Home › Manual › Repair and Diagnosis › Body and Frame › Seats › Seat Temperature Element › Service and Repair › Driver Seat and Passenger Seat Back Cushion Heater Replacement

Back to category Back to top Search Manual

Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

Driver Seat and Passenger Seat Back Cushion Heater Replacement

Driver Seat and Passenger Seat Back Cushion Heater Replacement

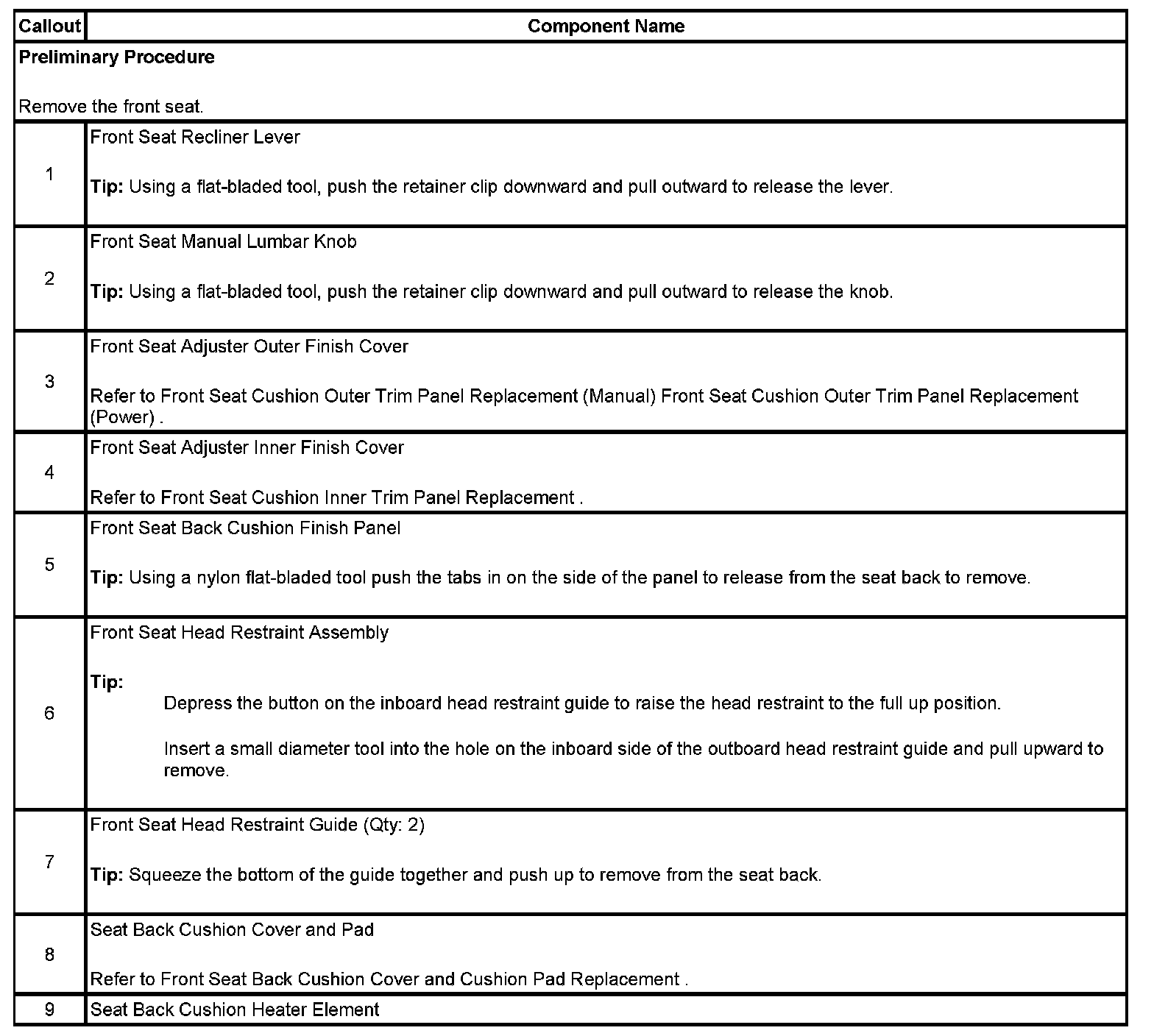

Technical service diagram

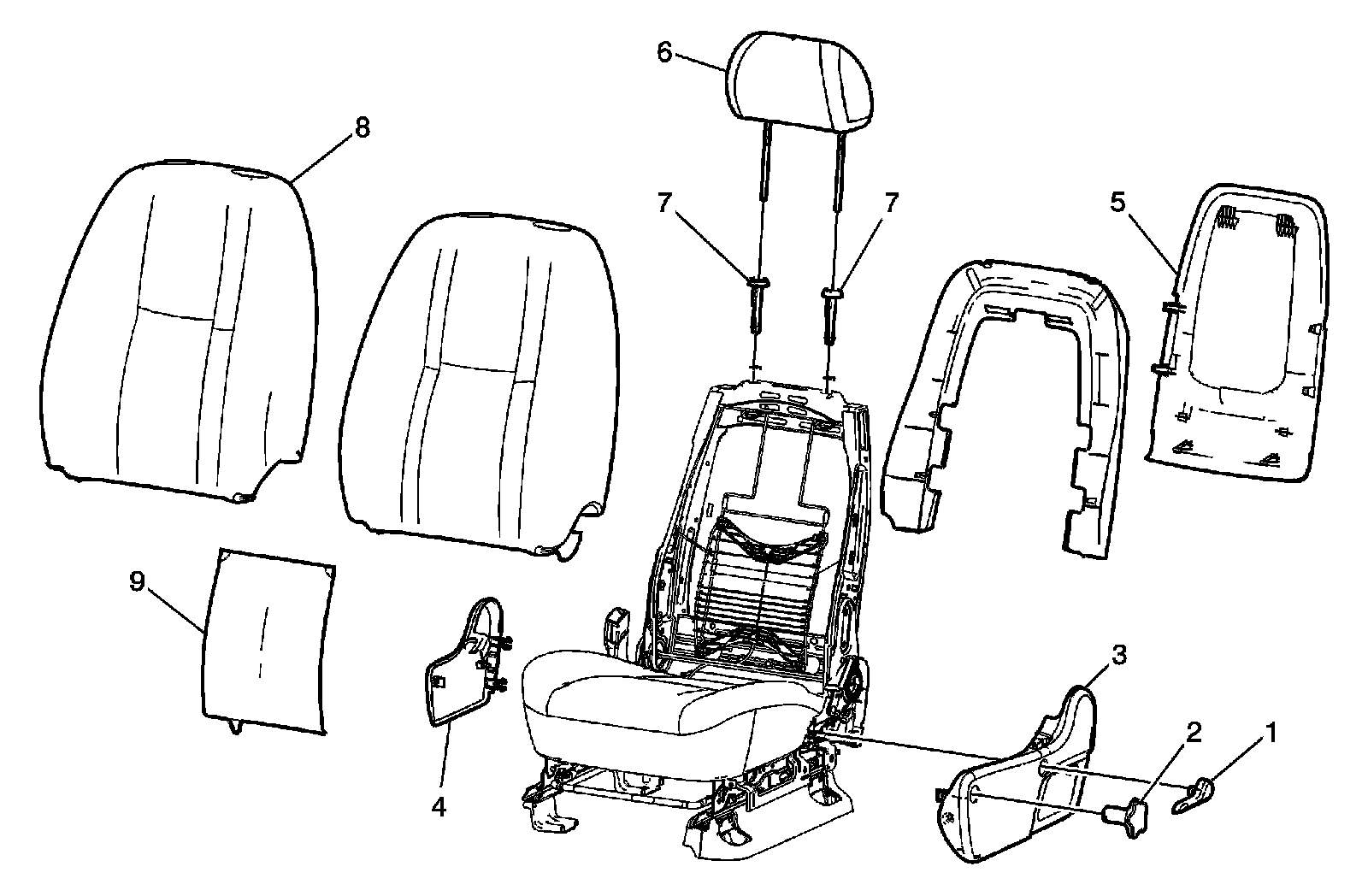

Technical service diagram

Devin's Silverado Repair Manual
2008 Chevrolet Silverado 1500 LS · VIN 1GCEC19C58Z150516

Technical source: Operation CHARM supplied archive.
Verify all vehicle-specific fitment before repair.
