Home › Manual › Repair and Diagnosis › Body and Frame › Seats › Seat Cushion › Service and Repair › Front Seat Cushion Outer Trim Panel Replacement (Power)

Back to category Back to top Search Manual

Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

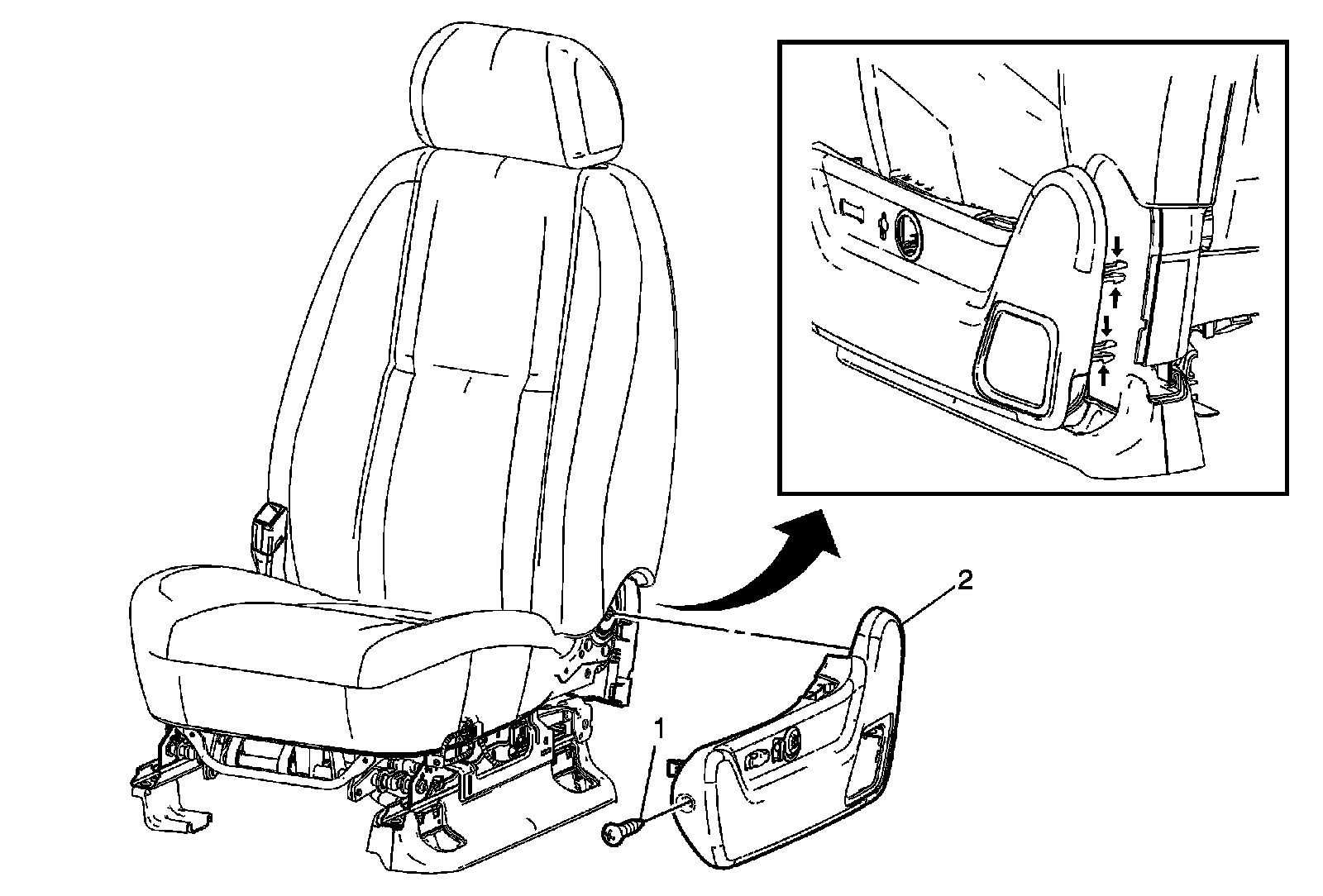

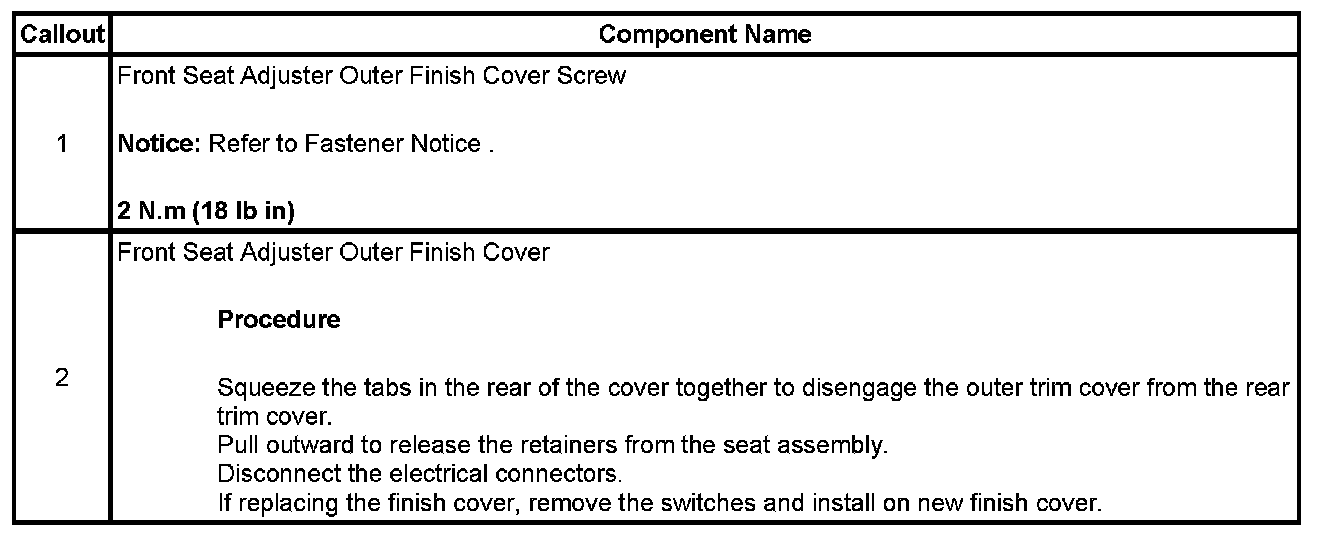

Front Seat Cushion Outer Trim Panel Replacement (Power)

Front Seat Cushion Outer Trim Panel Replacement (Power)

Technical service diagram

Technical service diagram
