Rear Seat Back Cushion Cover and Pad Replacement (Extended Cab with AM7)

Rear Seat Back Cushion Cover and Pad Replacement (Extended Cab with AM7)

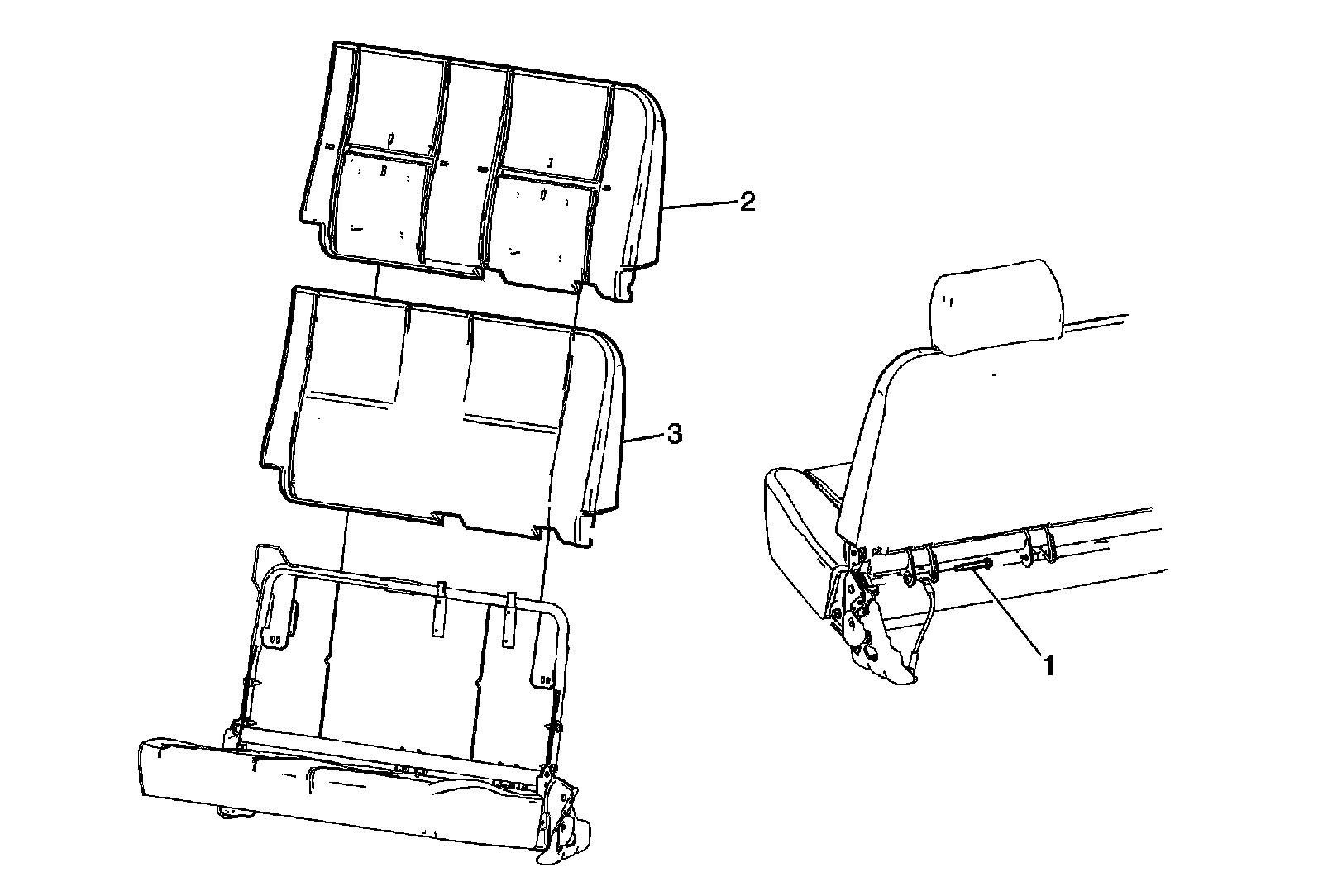

Technical service diagram

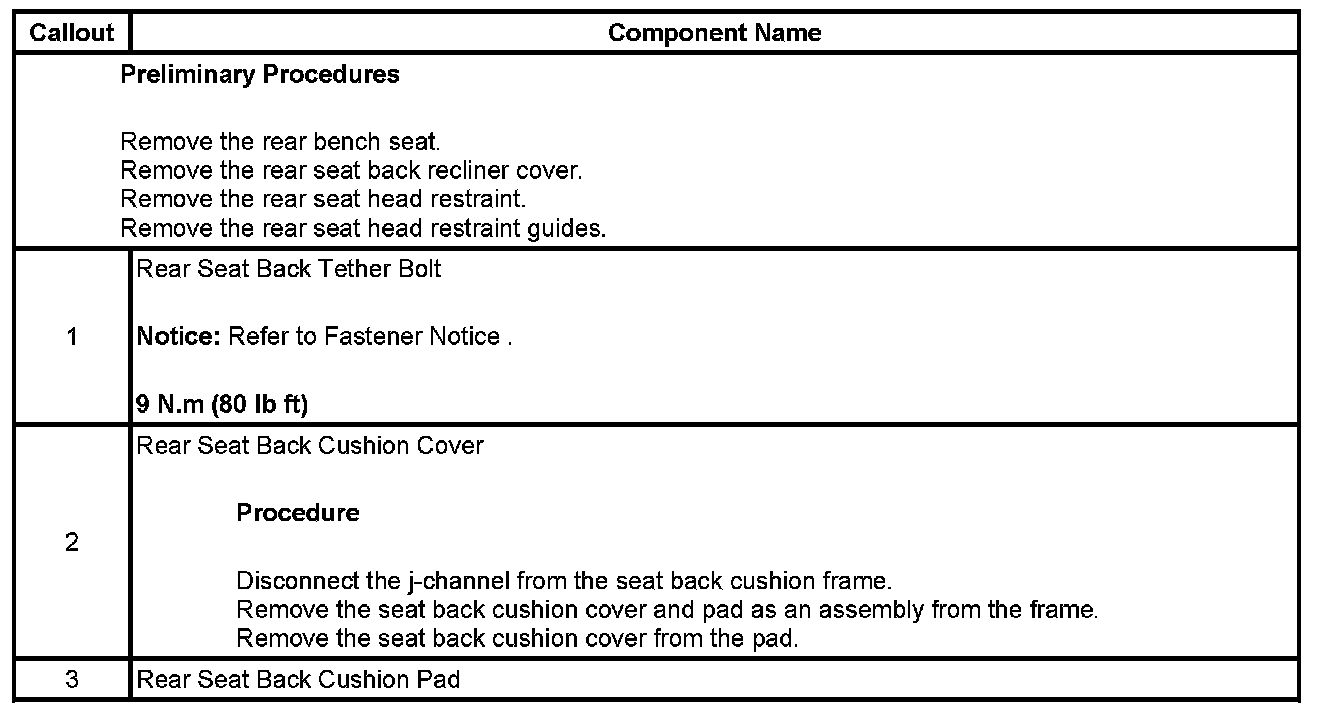

Technical service diagram
