Power Seat Motor Position Sensor: Diagrams

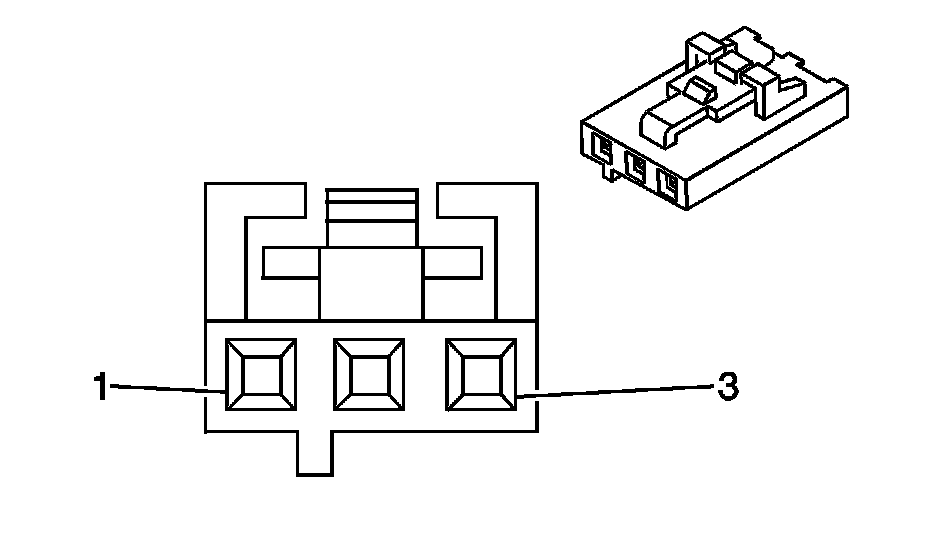

Component Connector End Views - Continued

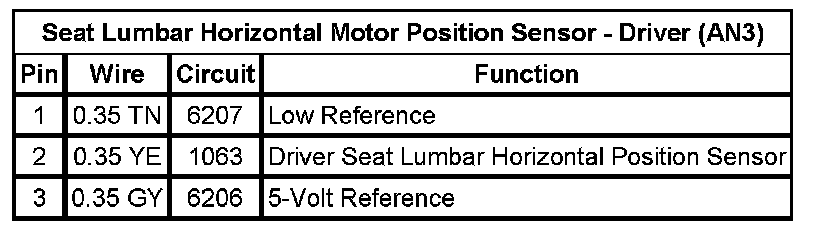

Seat Lumbar Horizontal Motor Position Sensor - Driver (AN3)

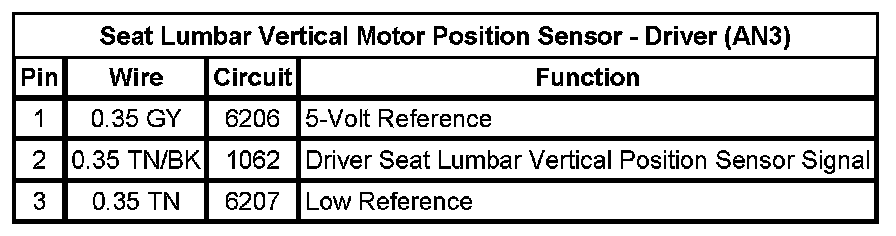

Seat Lumbar Vertical Motor Position Sensor - Driver (AN3)

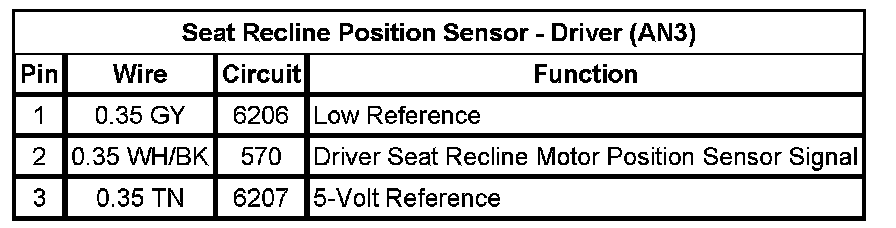

Seat Recline Position Sensor - Driver (AN3)

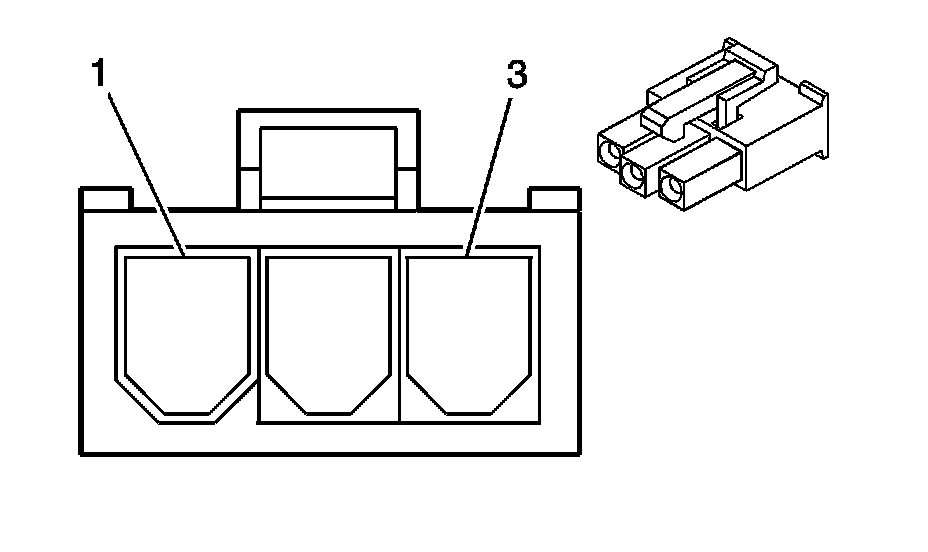

Component Connector End Views - Continued
Seat Lumbar Horizontal Motor Position Sensor - Driver (AN3)
Seat Lumbar Vertical Motor Position Sensor - Driver (AN3)
Seat Recline Position Sensor - Driver (AN3)
