Front Bumper Impact Bar Bracket Replacement (GMC)

Front Bumper Impact Bar Bracket Replacement (GMC)

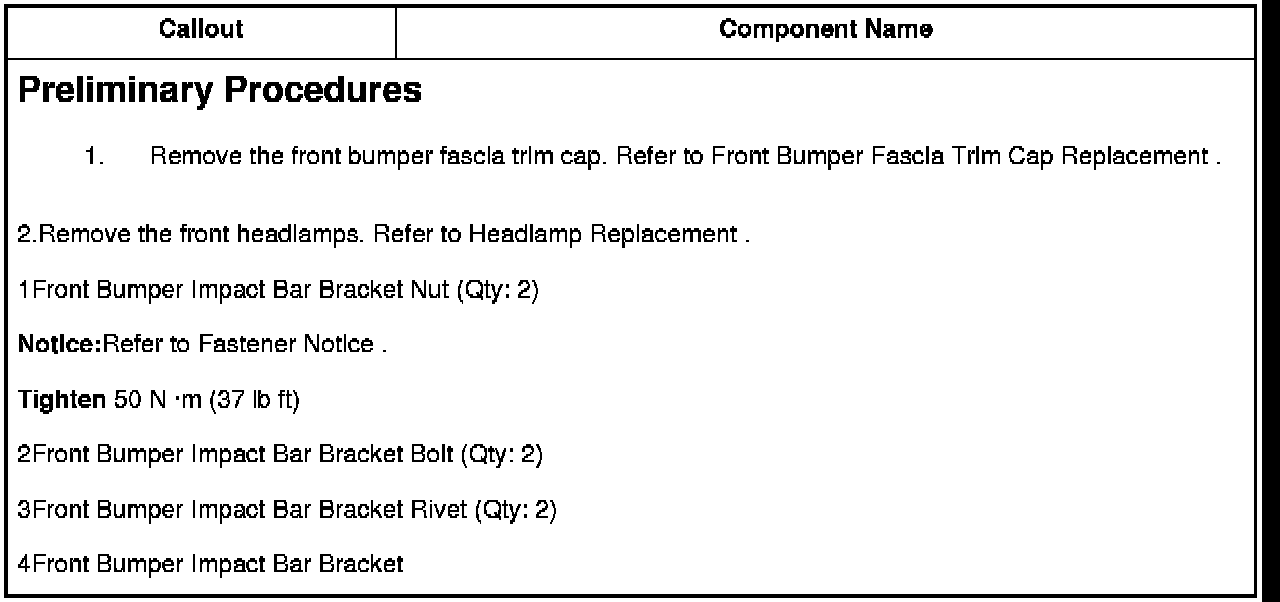

2.Remove the front headlamps. Refer to Headlamp Replacement .

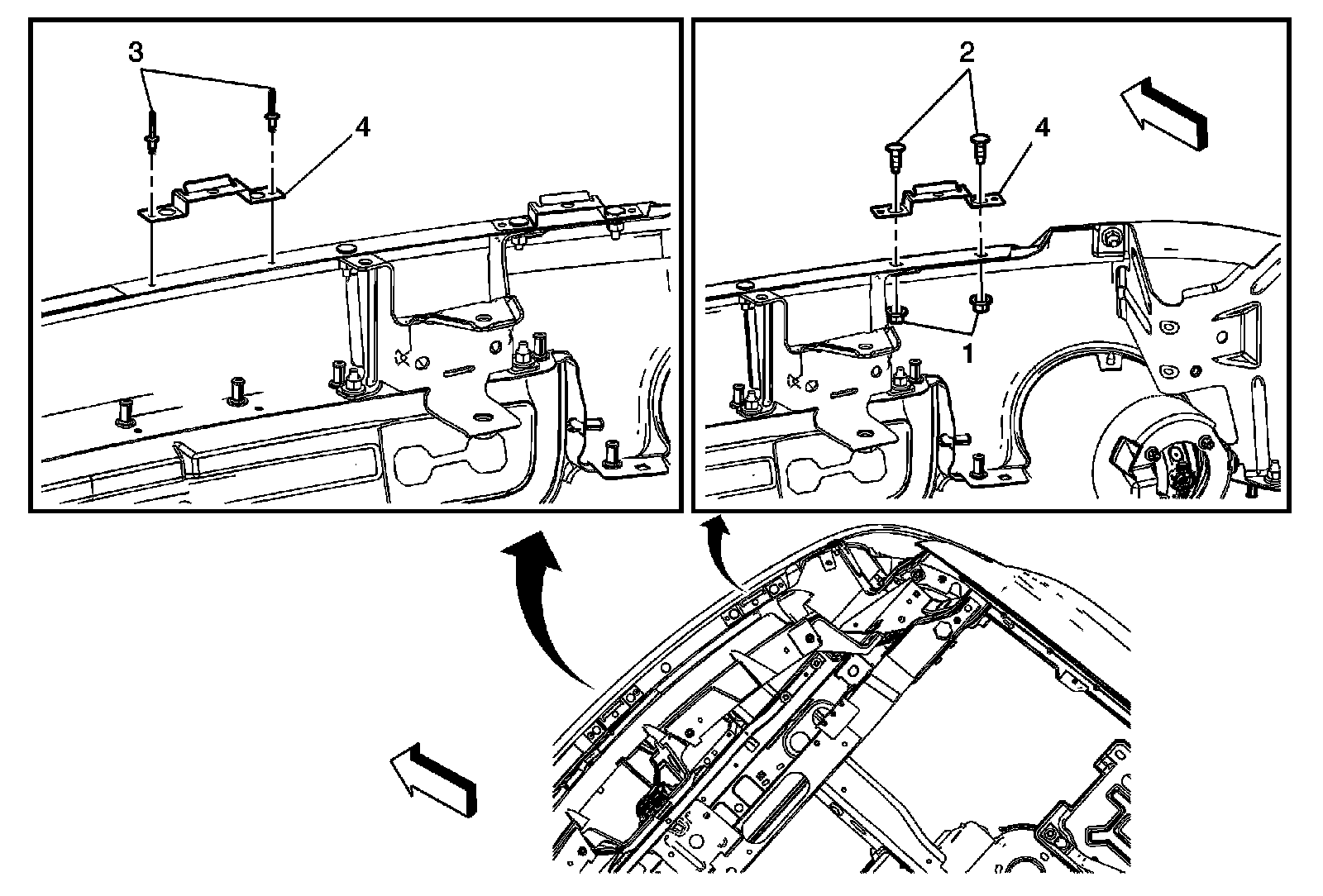

1Front Bumper Impact Bar Bracket Nut (Qty: 2)
Notice:Refer to Fastener Notice .
Tighten 50 N �m (37 lb ft)

2Front Bumper Impact Bar Bracket Bolt (Qty: 2)

3Front Bumper Impact Bar Bracket Rivet (Qty: 2)

4Front Bumper Impact Bar Bracket
