Seat Belt Tensioner: Diagrams

Component Connector End Views - Continued

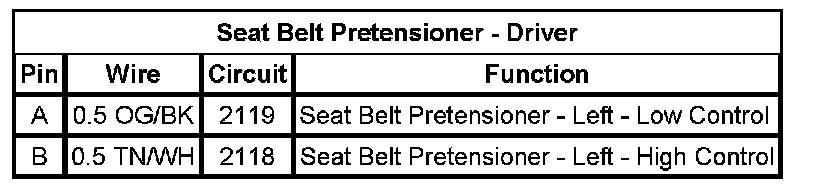

Seat Belt Pretensioner - Driver

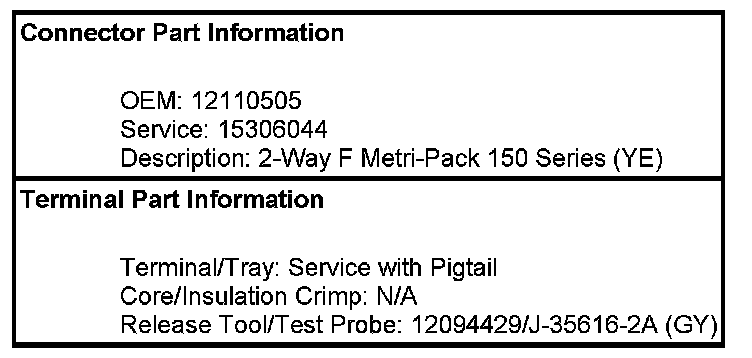

Technical service diagram

Technical service diagram

Technical service diagram

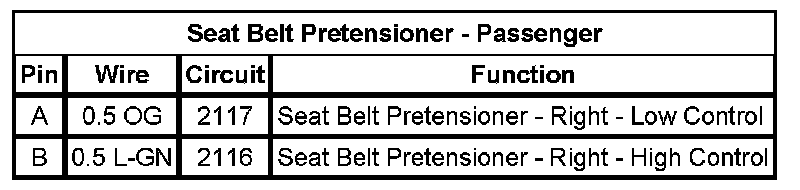

Seat Belt Pretensioner - Passenger

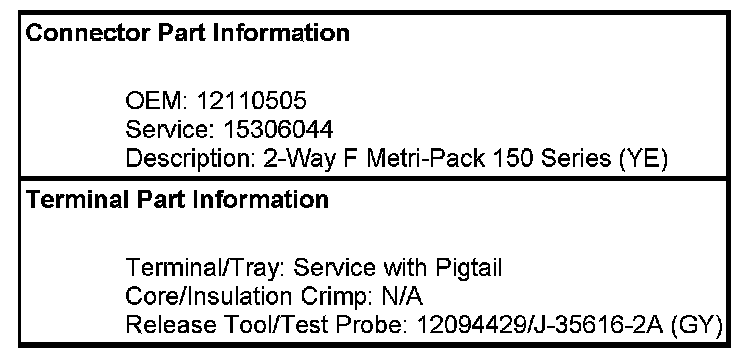

Technical service diagram

Technical service diagram

Technical service diagram
