Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

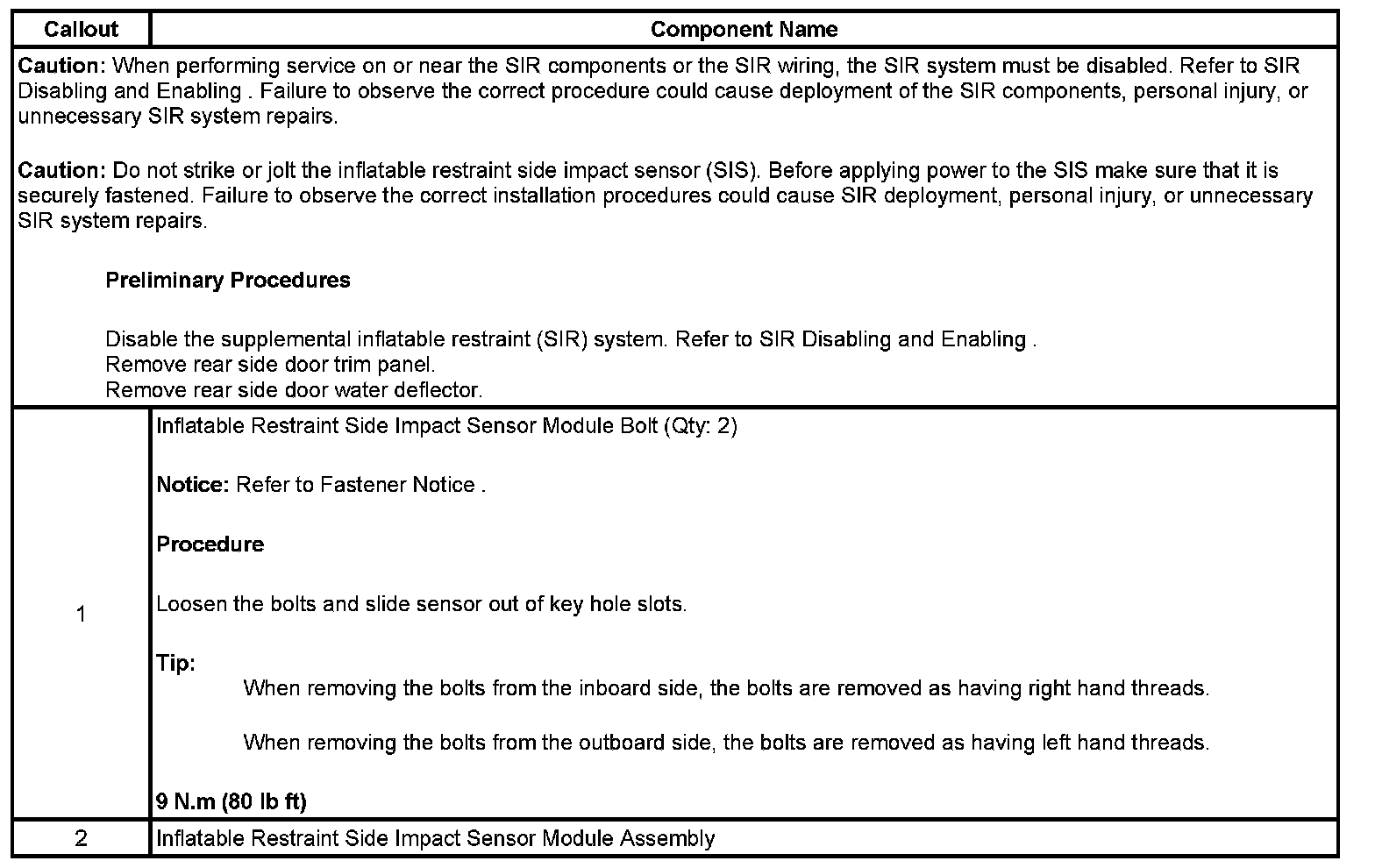

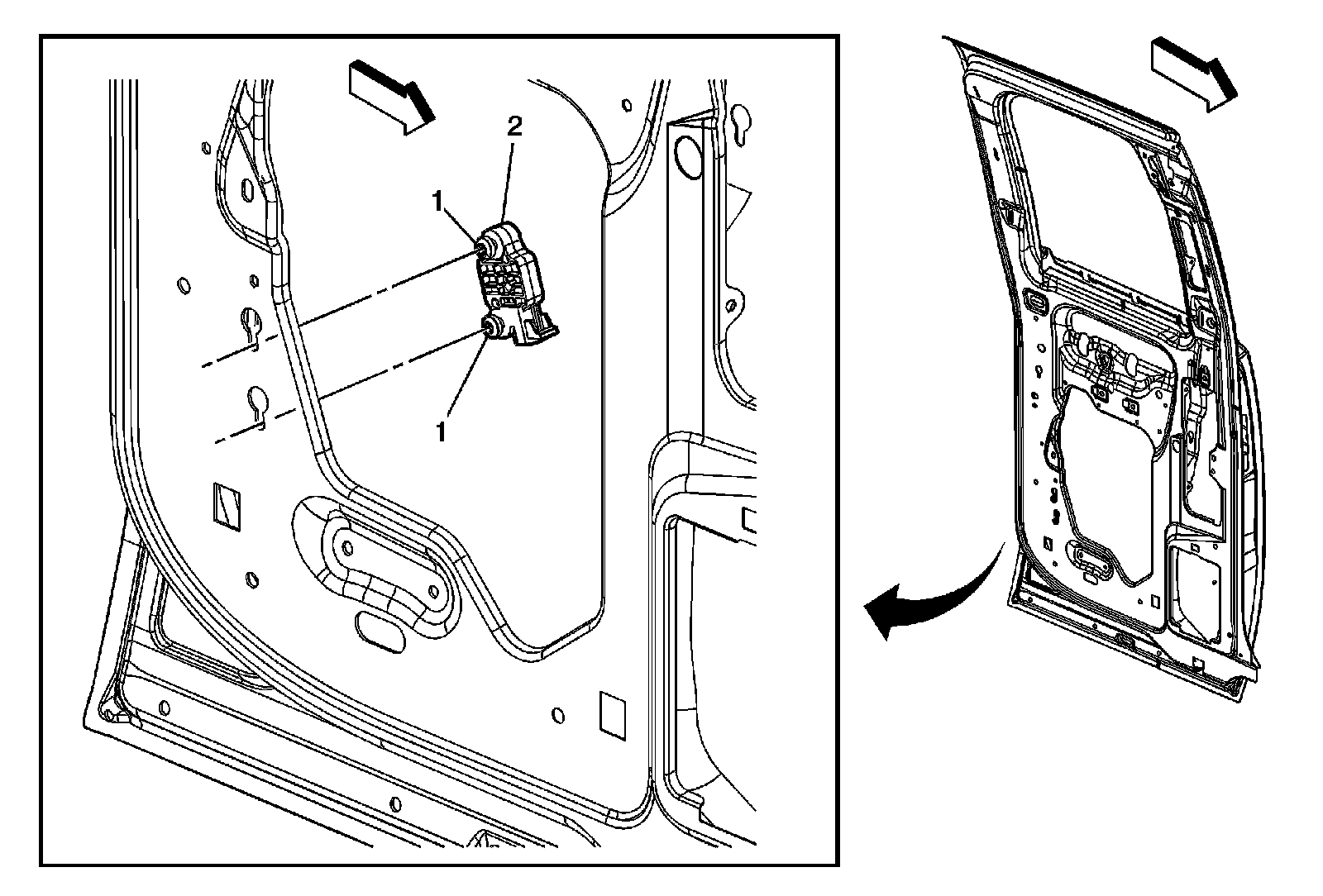

Inflatable Restraint Side Impact Sensor Replacement (Extended Cab)

Inflatable Restraint Side Impact Sensor Replacement (Extended Cab)

Technical service diagram

Technical service diagram

Devin's Silverado Repair Manual
2008 Chevrolet Silverado 1500 LS · VIN 1GCEC19C58Z150516

Technical source: Operation CHARM supplied archive.
Verify all vehicle-specific fitment before repair.
