Air Bag Control Module: Diagrams

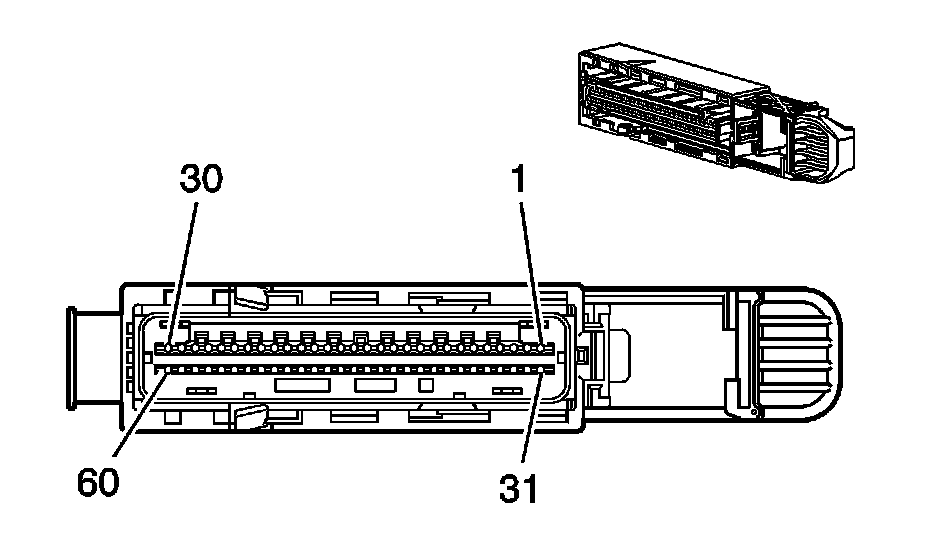

Component Connector End Views - Continued

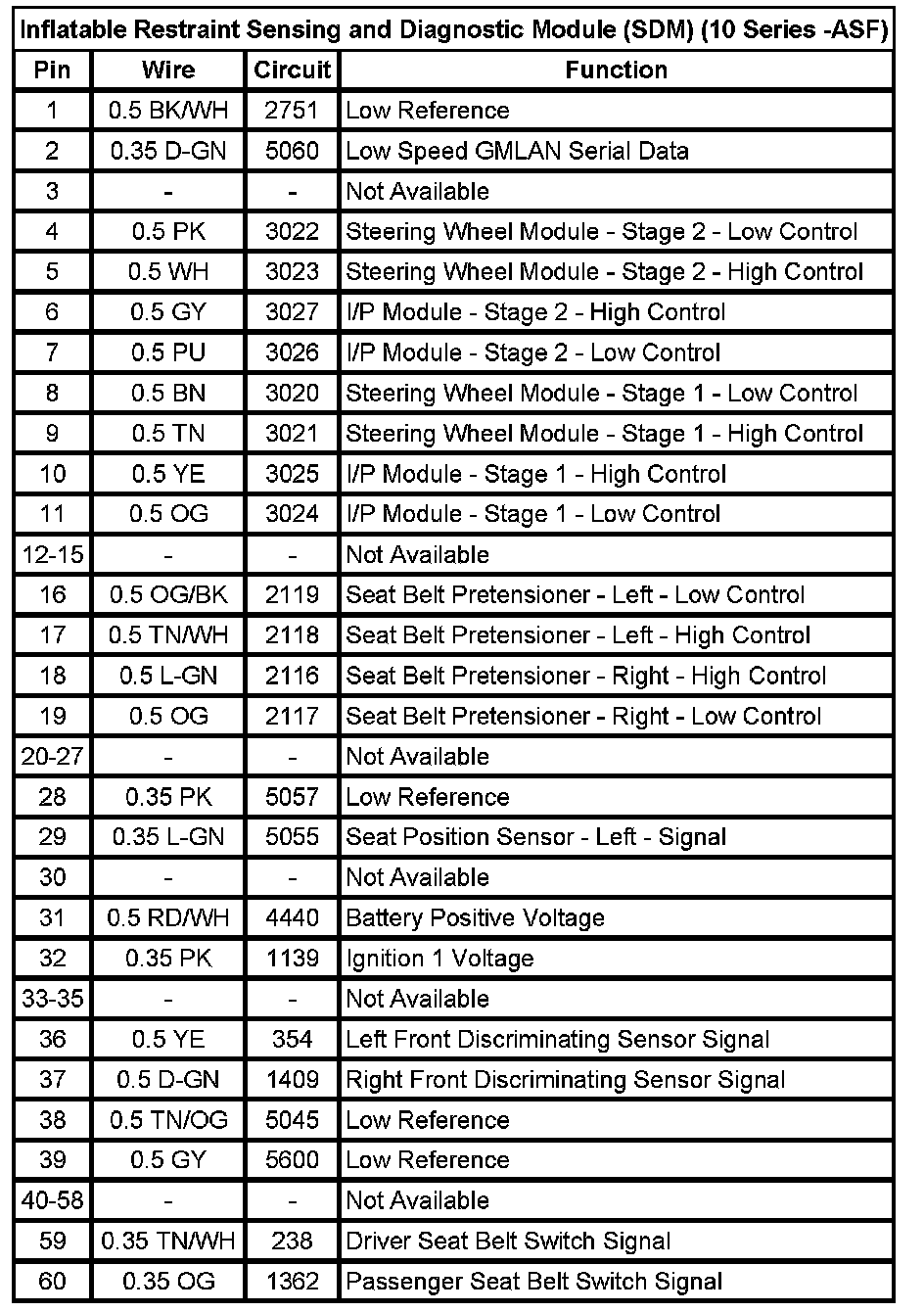

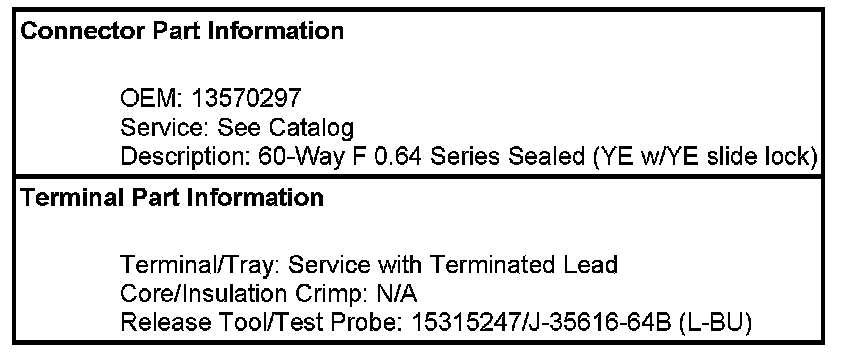

Inflatable Restraint Sensing and Diagnostic Module (SDM) (10 Series -ASF)

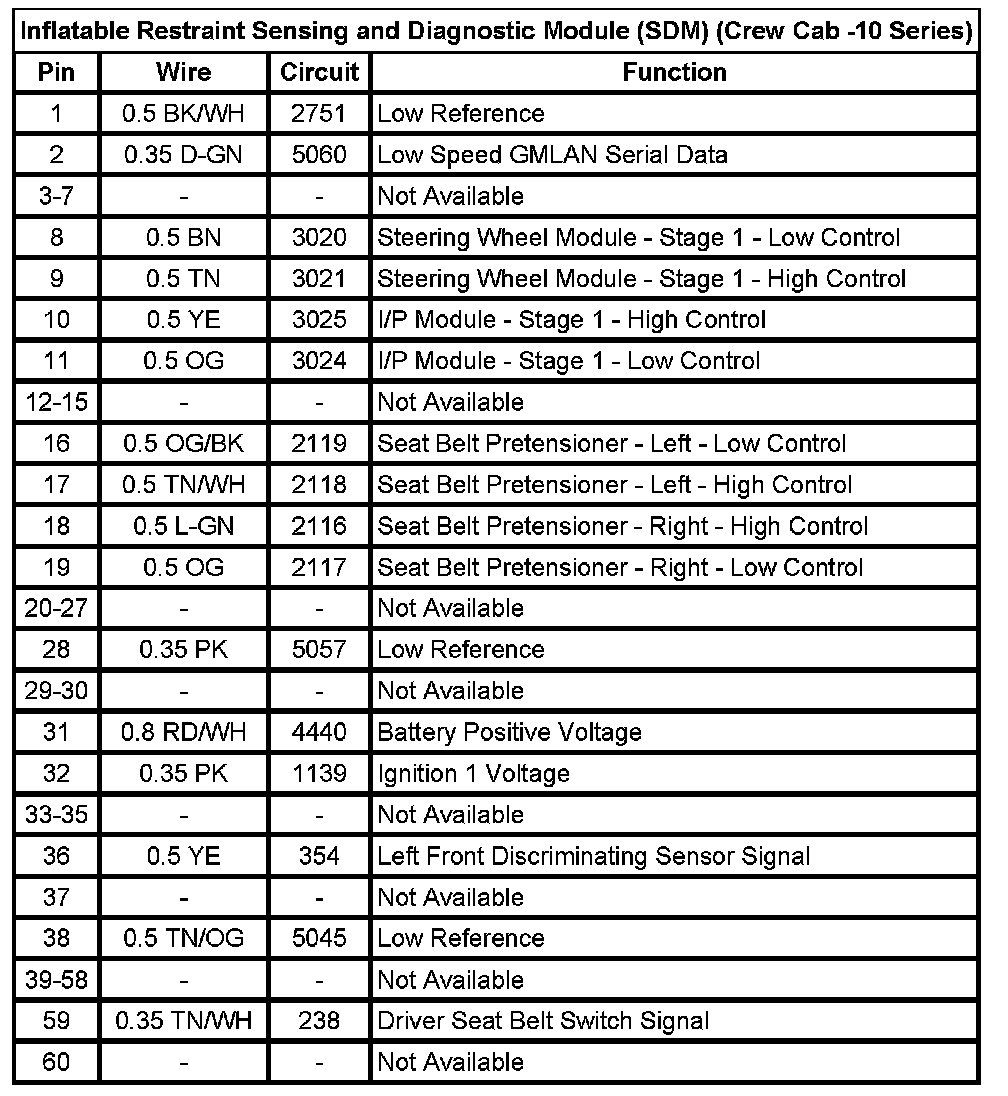

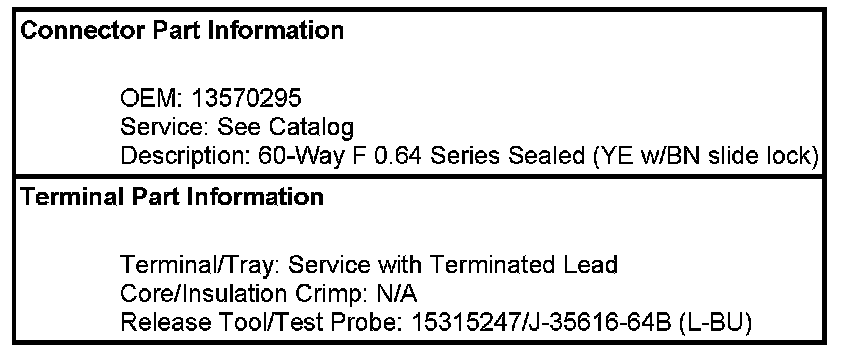

Inflatable Restraint Sensing and Diagnostic Module (SDM) (Crew Cab -10 Series)

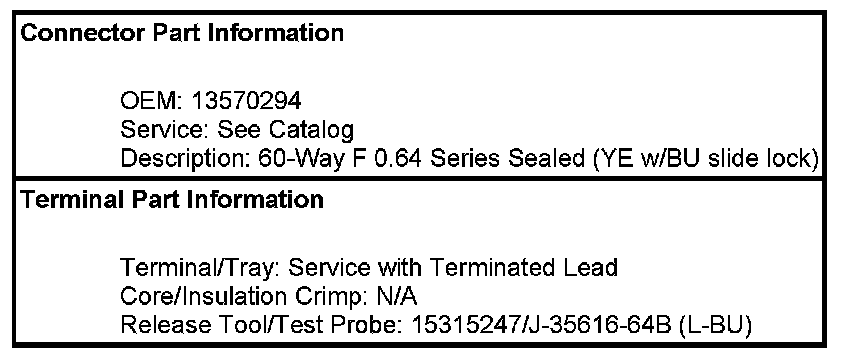

Inflatable Restraint Sensing and Diagnostic Module (SDM) (Extended/Crew Cab +10 Series +ASF)

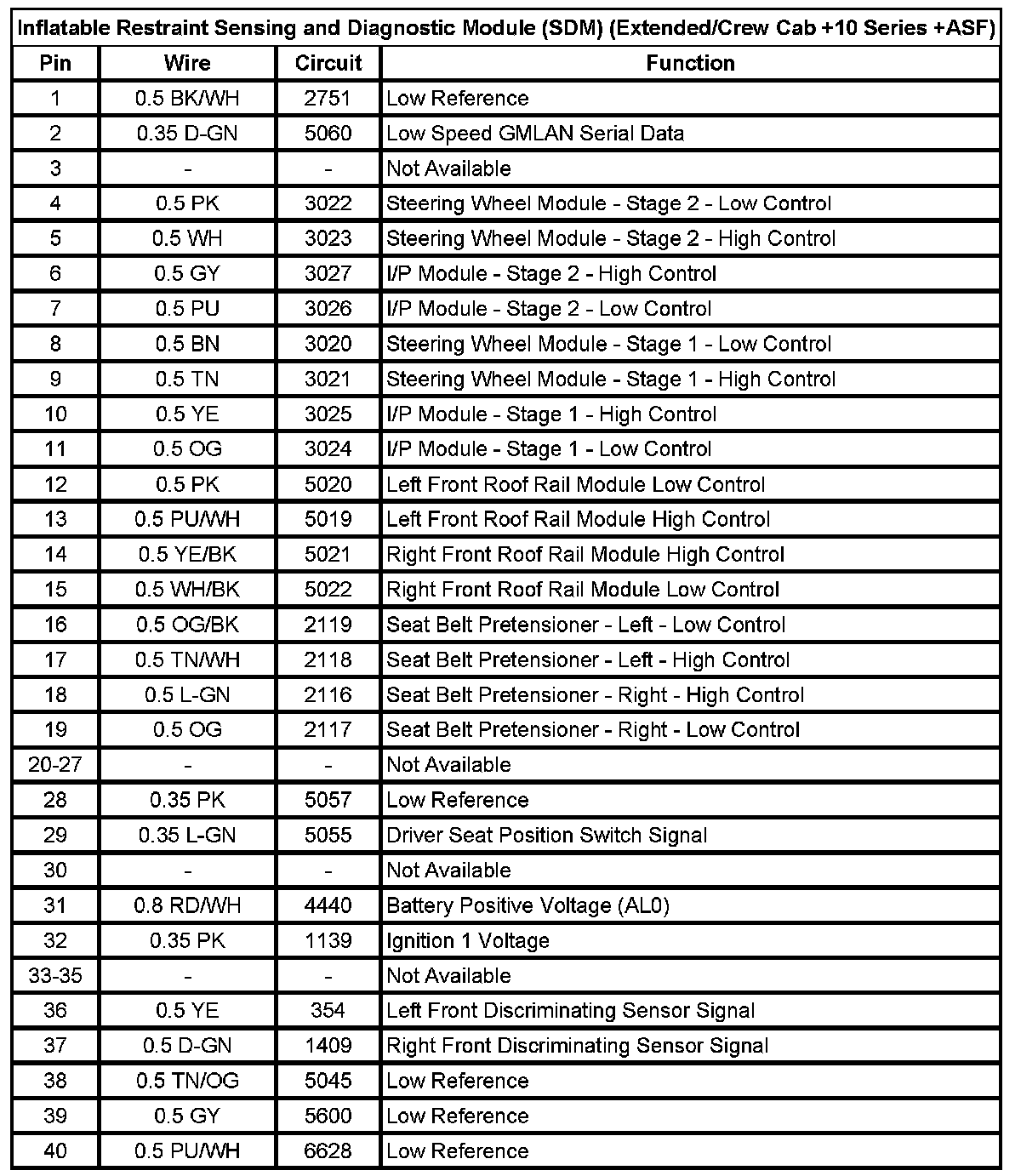

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Extended/Crew Cab +10 Series +ASF) (Pin 1 To 40):

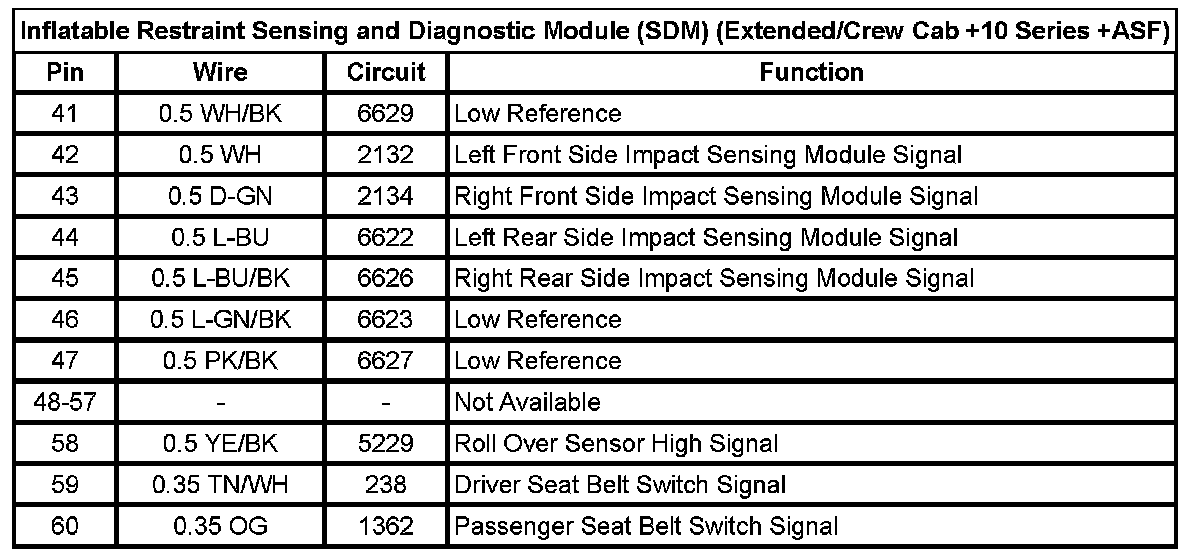

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Extended/Crew Cab +10 Series +ASF) (Pin 41 To 60):

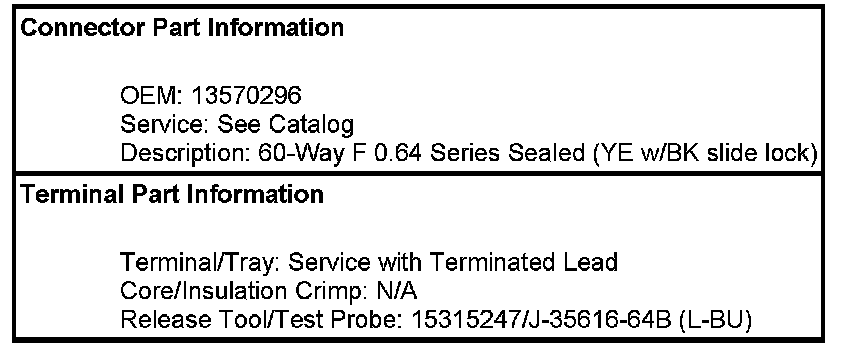

Inflatable Restraint Sensing and Diagnostic Module (SDM) (Regular Cab +10 Series +ASF)

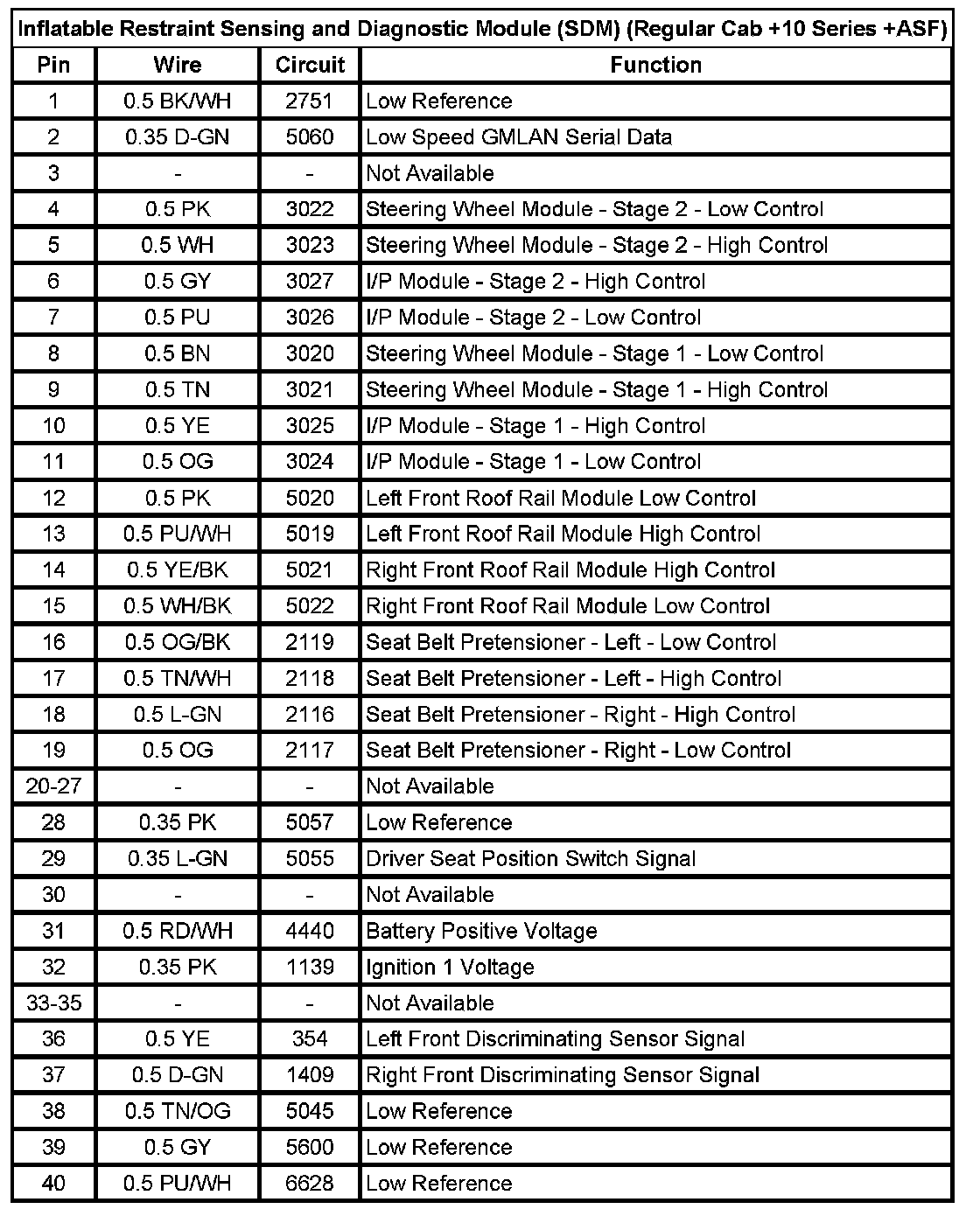

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Regular Cab +10 Series +ASF) (Pin 1 To 40):

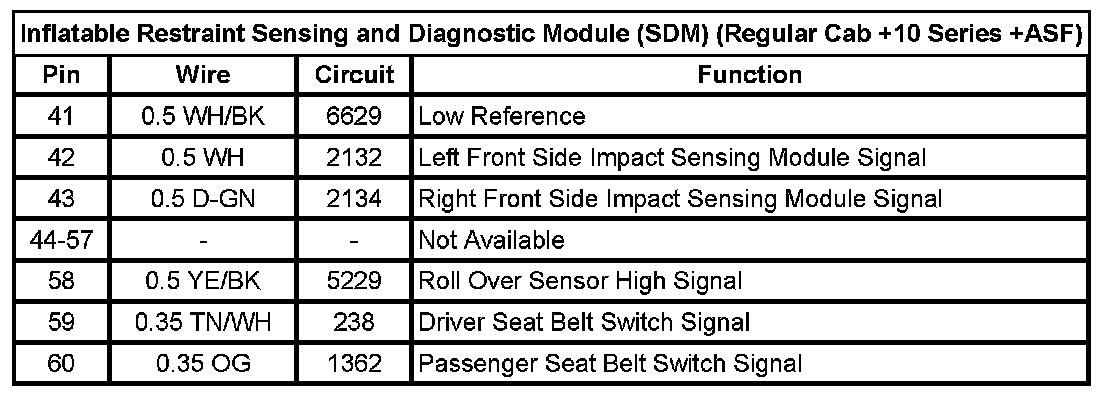

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Regular Cab +10 Series +ASF) (Pin 41 To 60):

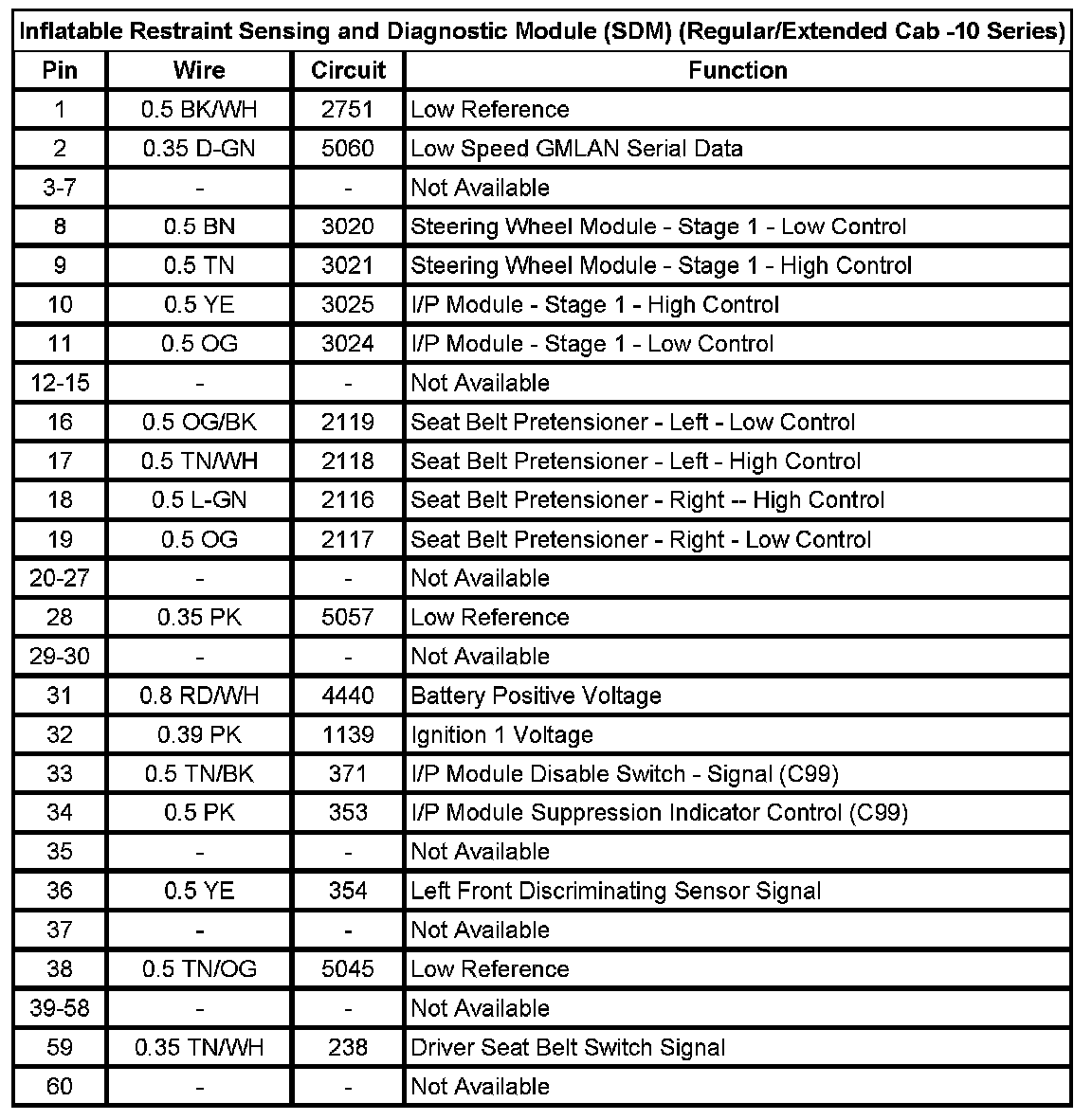

Inflatable Restraint Sensing and Diagnostic Module (SDM) (Regular/Extended Cab -10 Series)
