Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

Power Steering Gear Inlet Pipe/Hose Replacement (Gas Without Hydroboost)

Power Steering Gear Inlet Pipe/Hose Replacement (Gas Without Hydroboost)

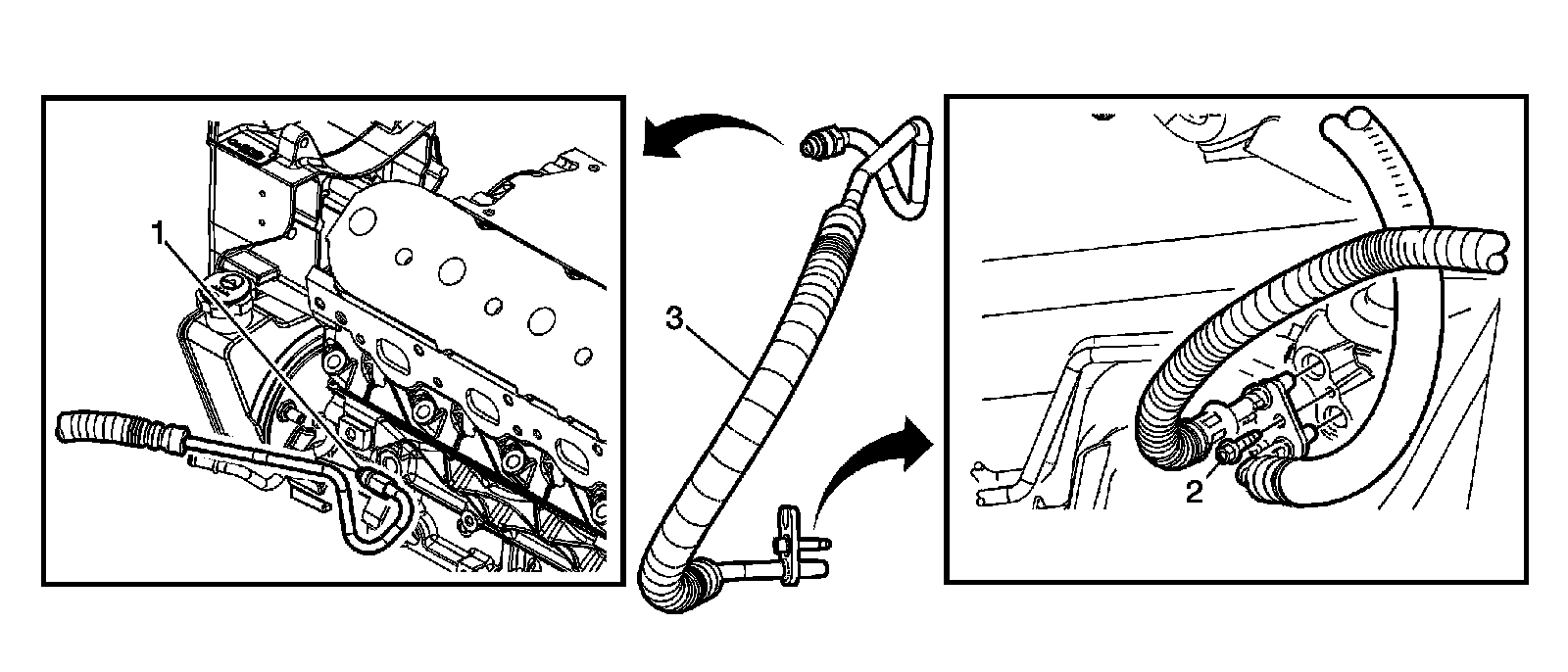

Technical service diagram

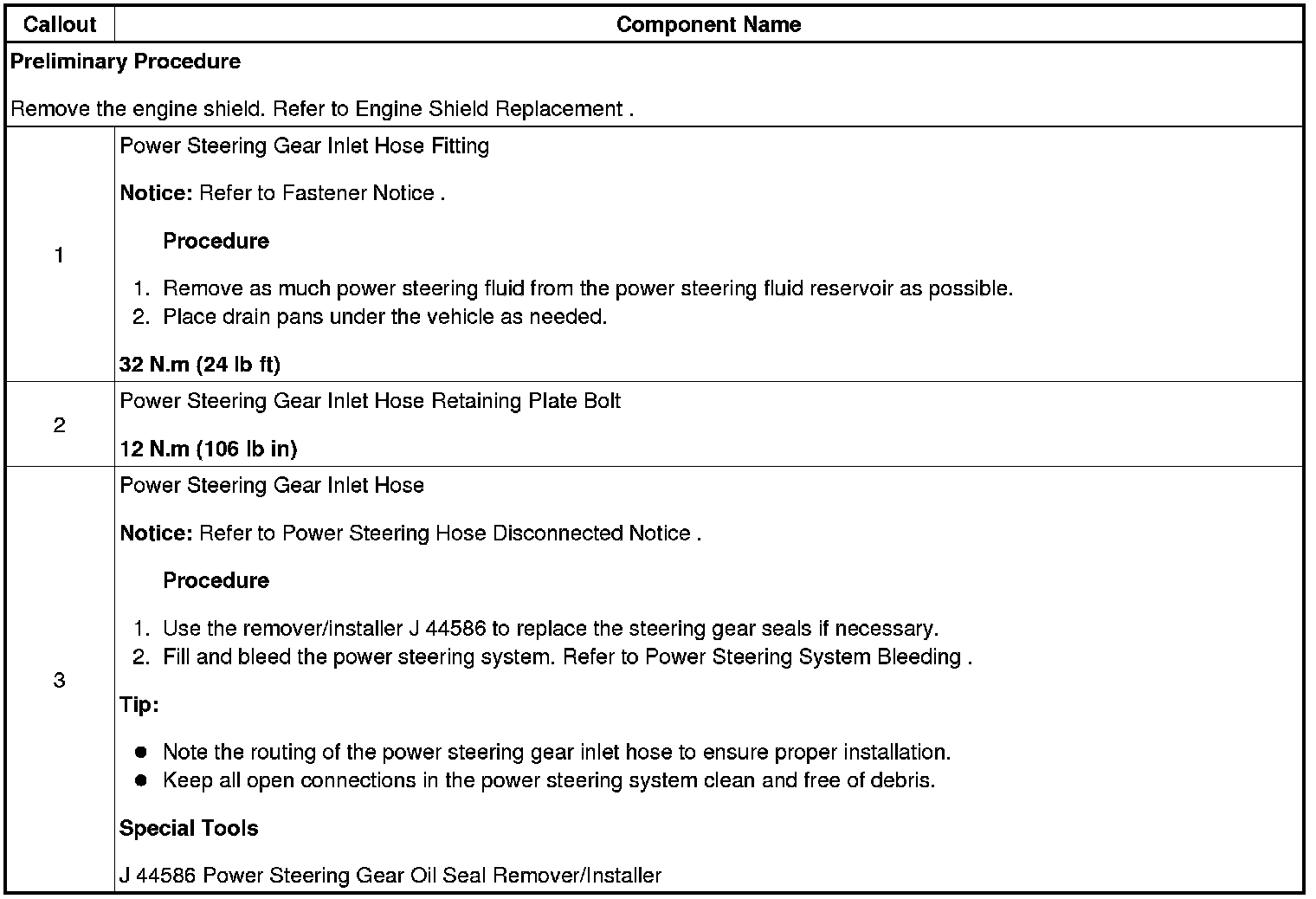

Technical service diagram
