Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

X322

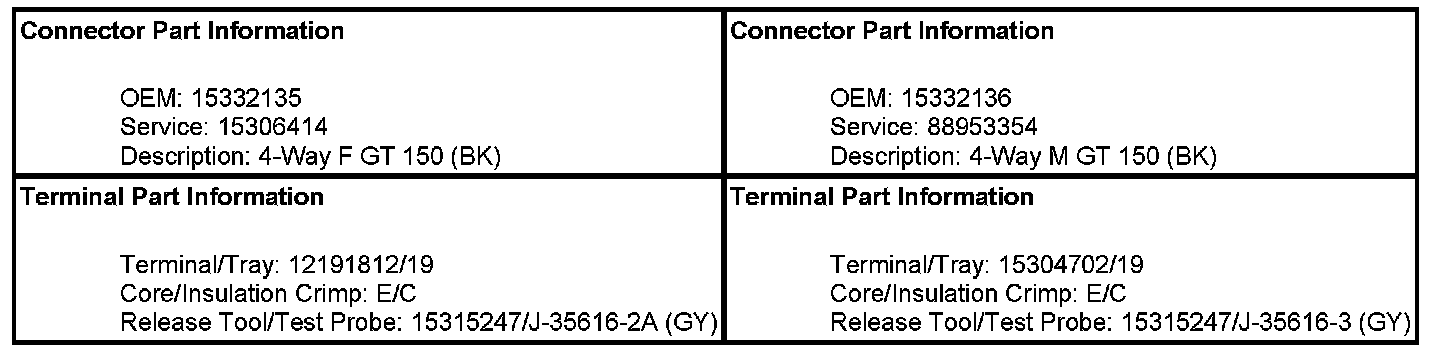

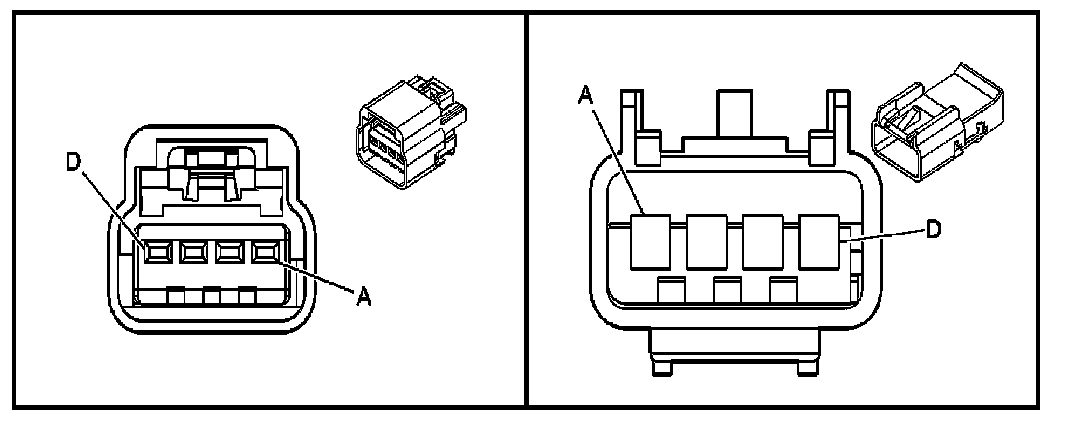

Inline Harness Connector End Views

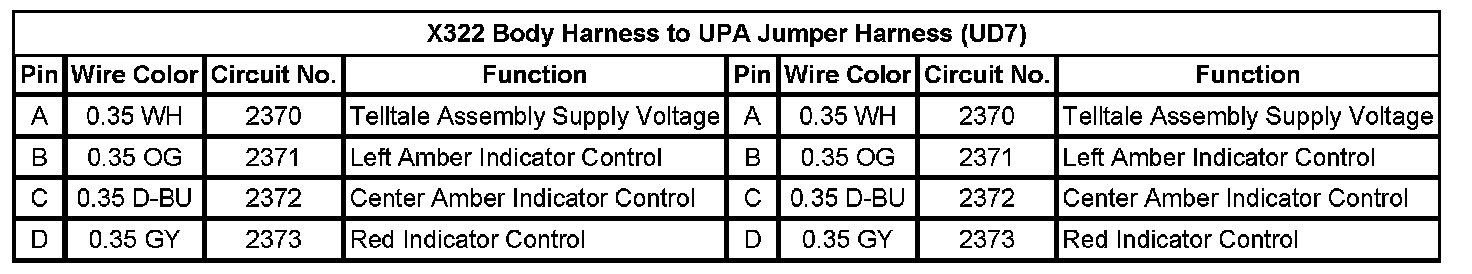

X322 Body Harness to UPA Jumper Harness (UD7)
