X224

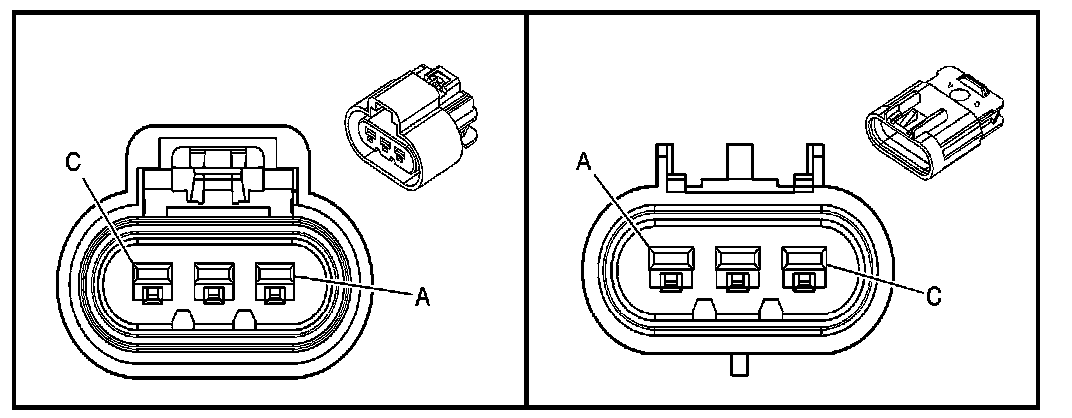

Inline Harness Connector End Views

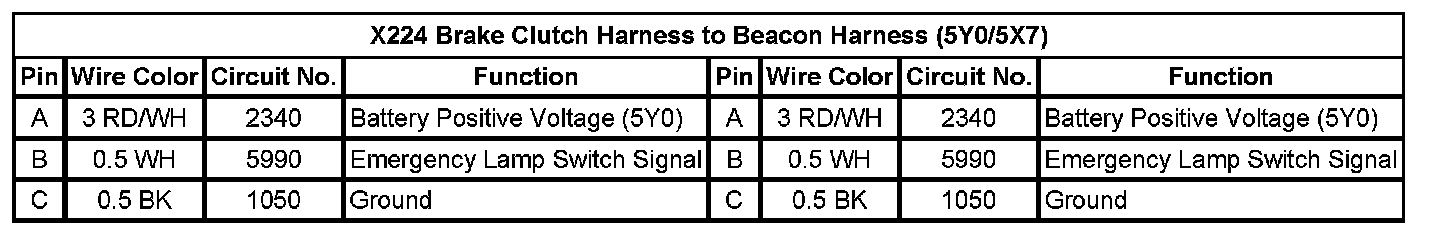

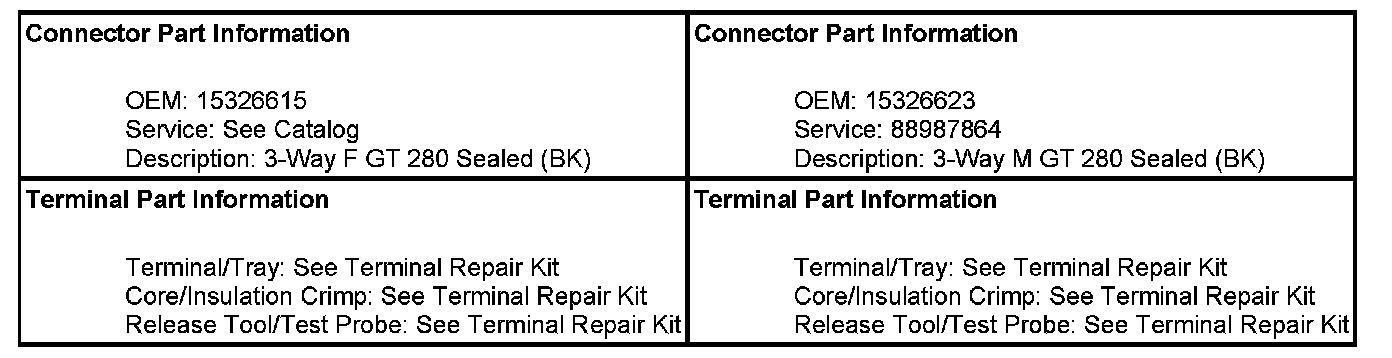

X224 Brake Clutch Harness to Beacon Harness (5Y0/5X7)

Technical service diagram

Technical service diagram

Technical service diagram
