X205

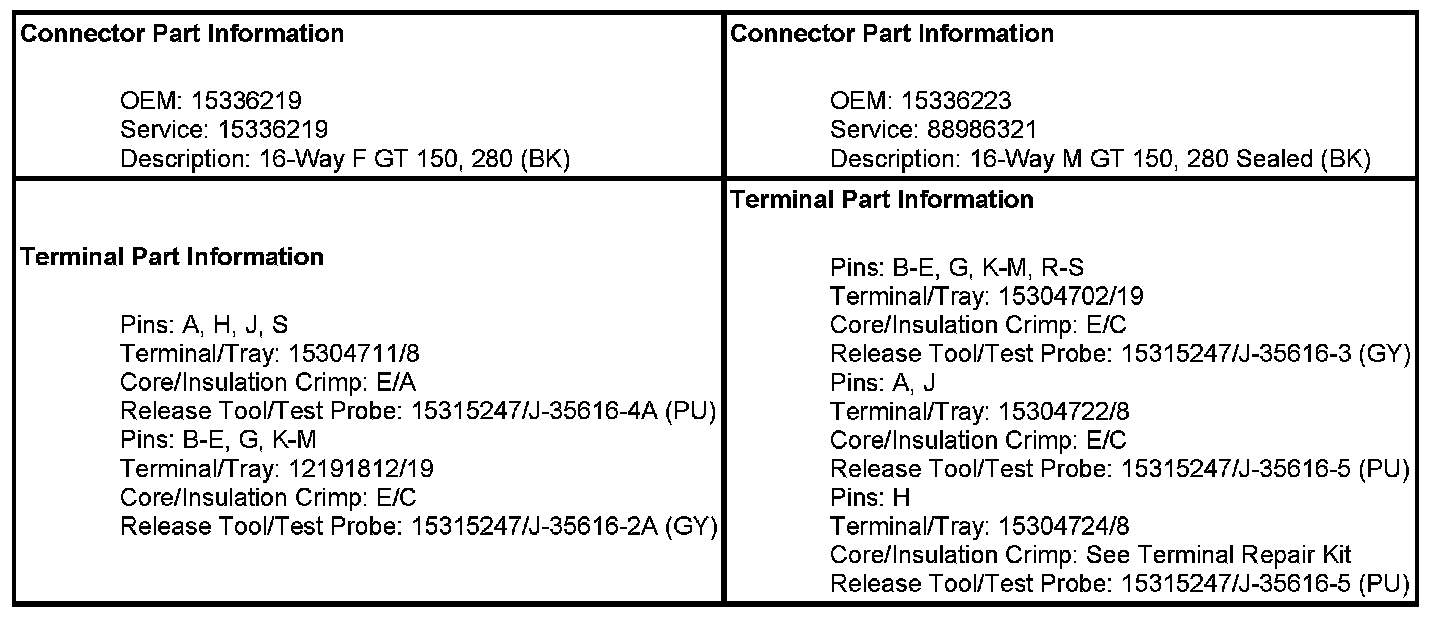

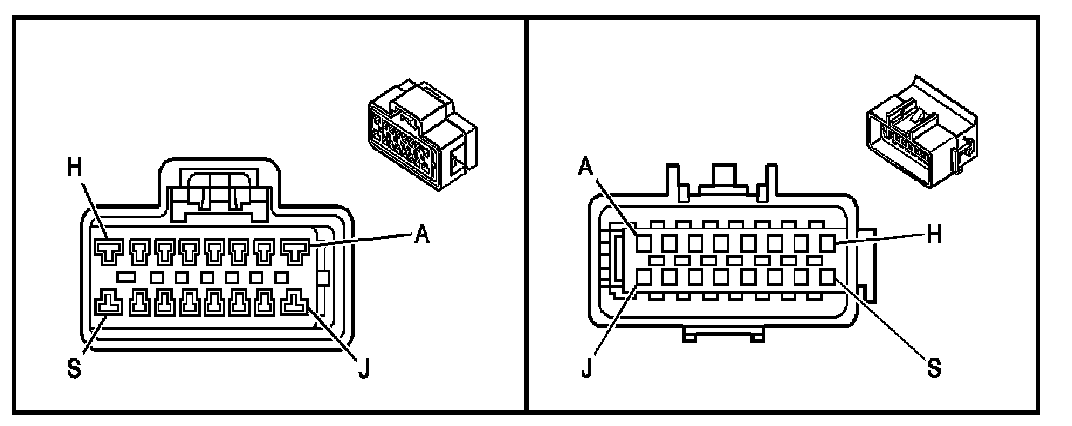

Inline Harness Connector End Views

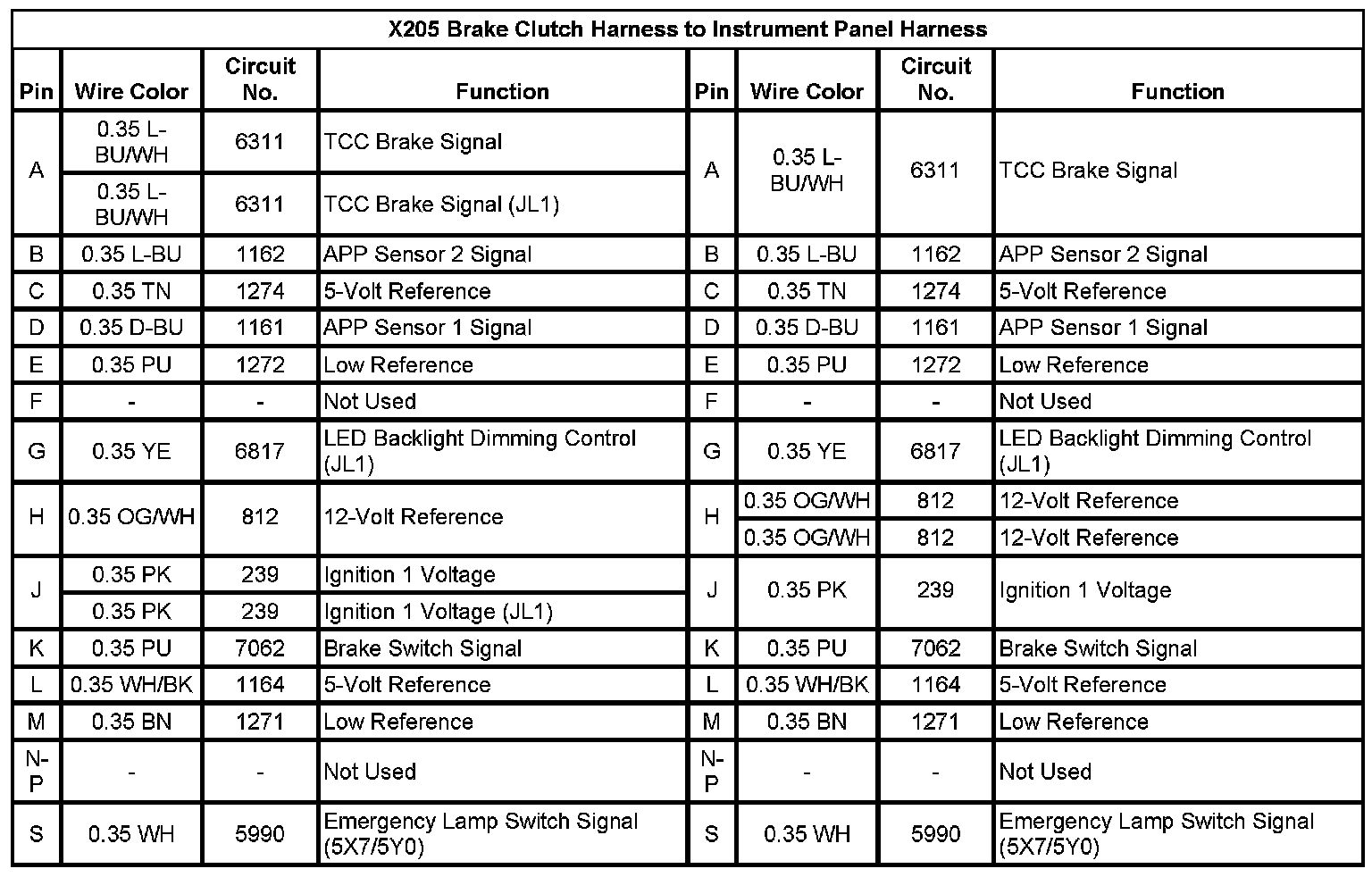

X205 Brake Clutch Harness to Instrument Panel Harness

Technical service diagram

Technical service diagram

Technical service diagram
