X112

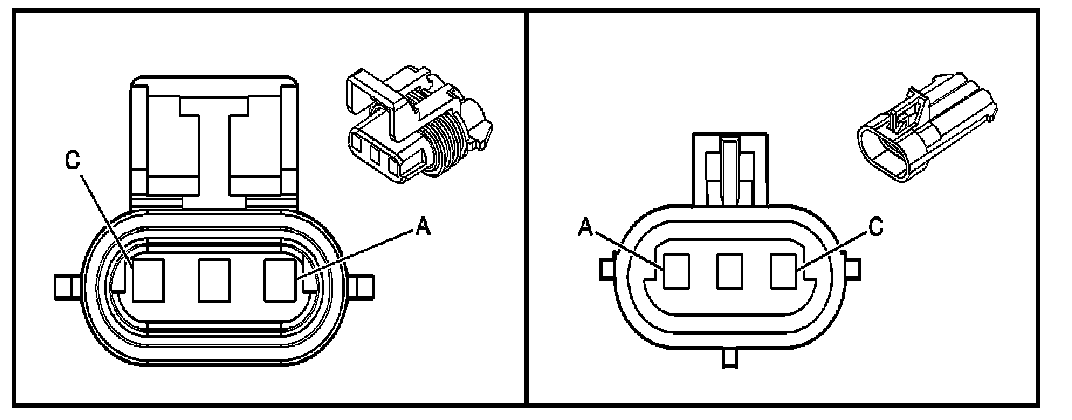

Inline Harness Connector End Views

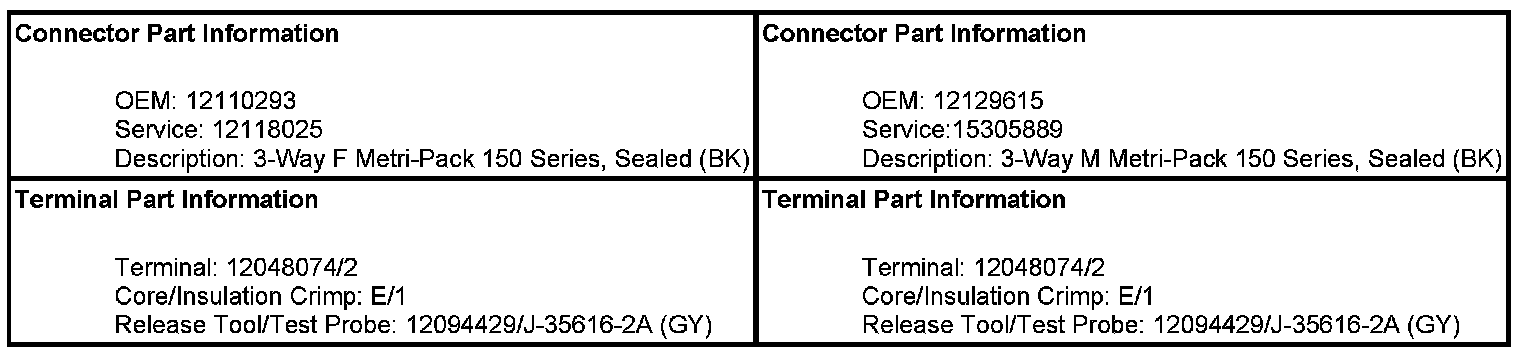

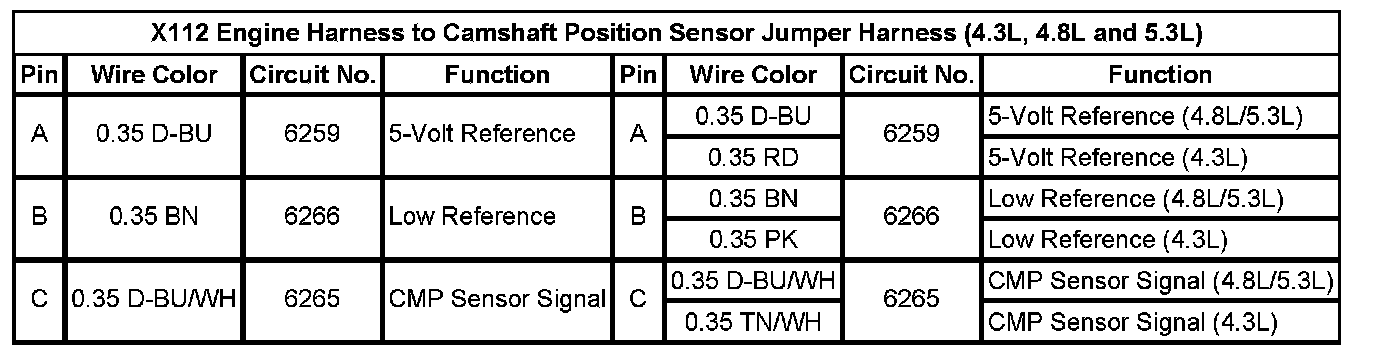

X112 Engine Harness to Camshaft Position Sensor Jumper Harness (4.3L, 4.8L and 5.3L)

Technical service diagram

Technical service diagram

Technical service diagram
