X109

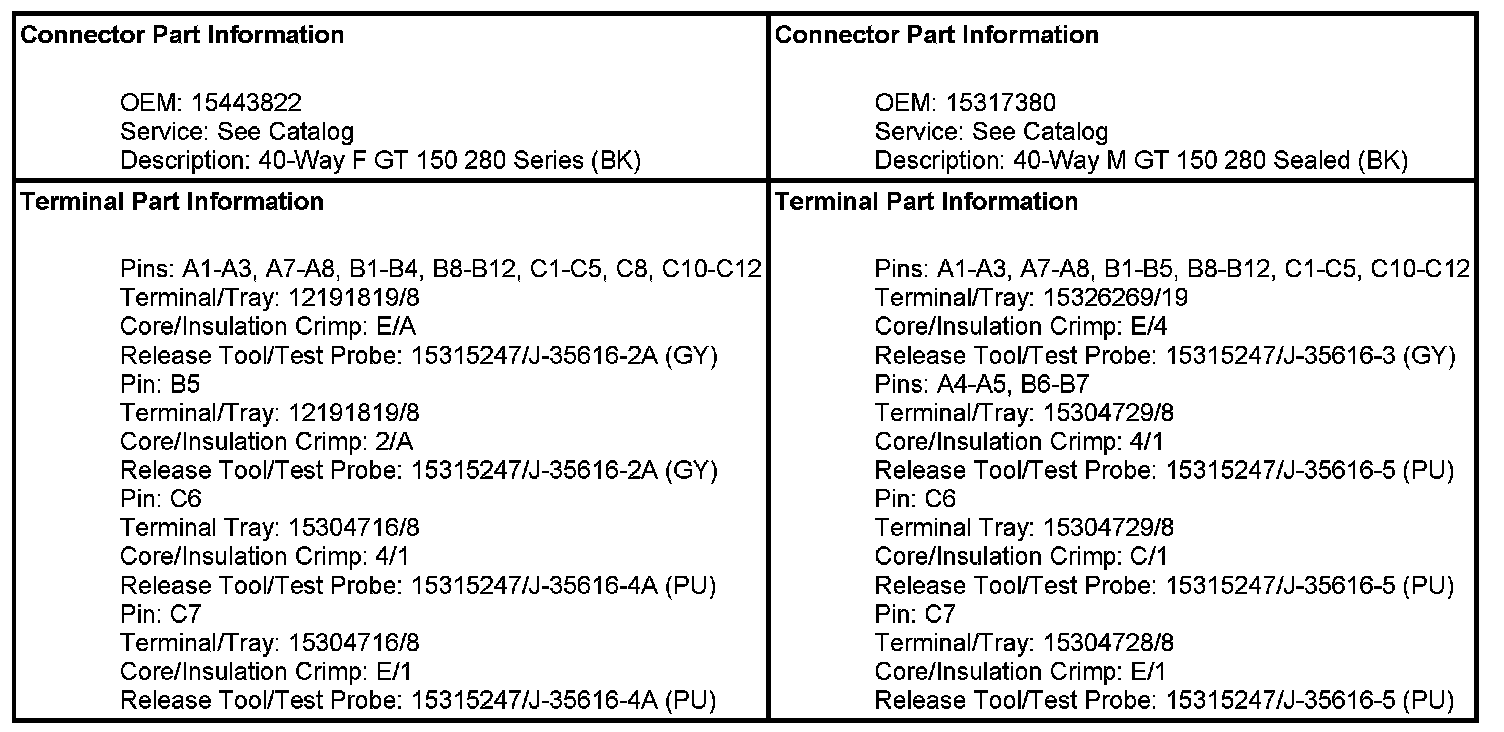

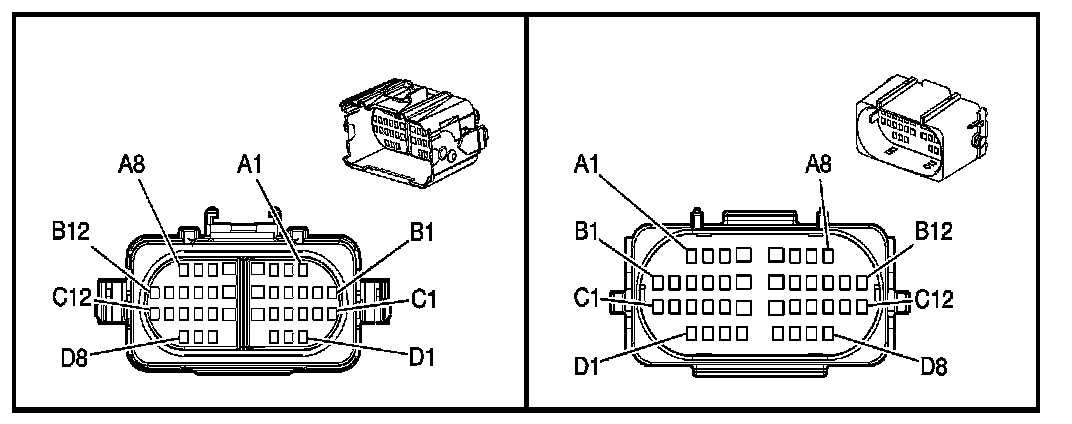

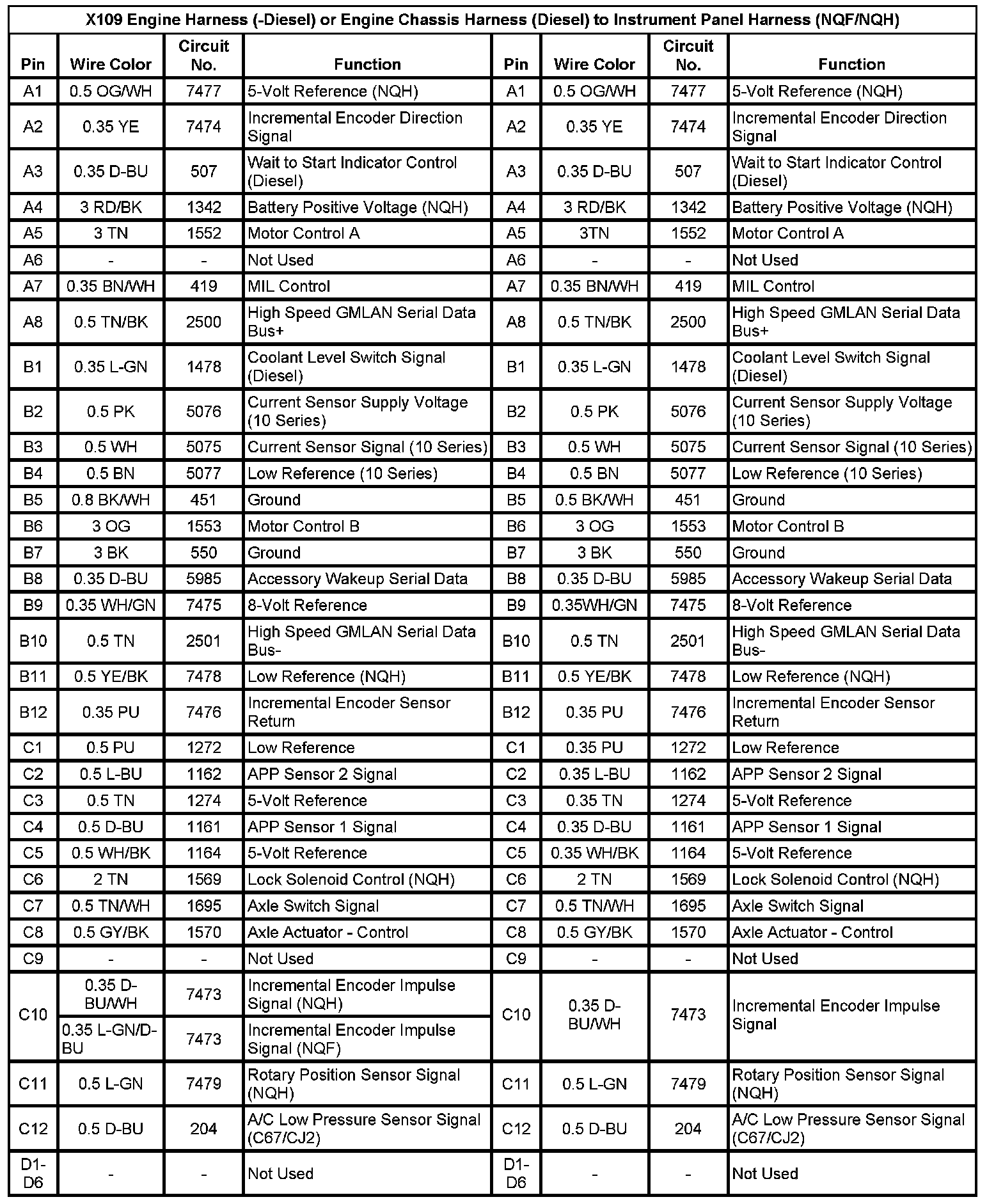

Inline Harness Connector End ViewsX109 Engine Harness (-Diesel) or Engine Chassis Harness (Diesel) to Instrument Panel Harness (NQF/NQH)X109 Engine Harness (-Diesel) Or Engine Chassis Harness (Diesel) To Instrument Panel Harness (NQF/NQH) (Pin A1 To D6):

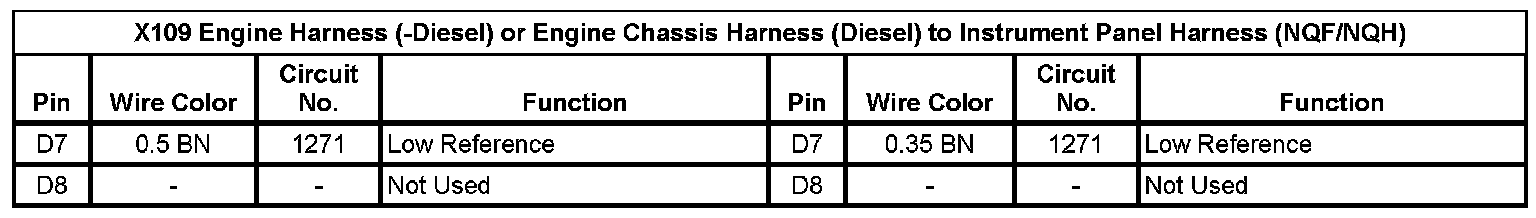

X109 Engine Harness (-Diesel) Or Engine Chassis Harness (Diesel) To Instrument Panel Harness (NQF/NQH) (Pin D7 To D8):

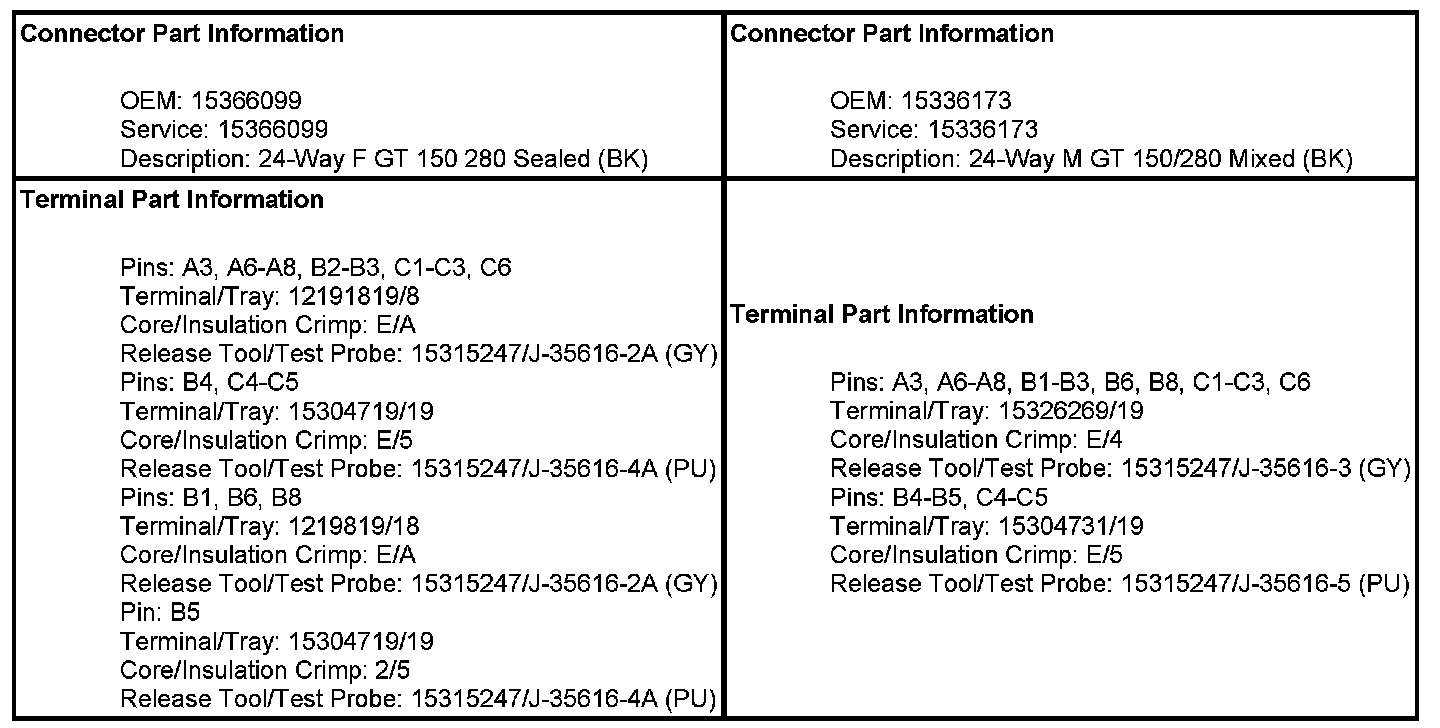

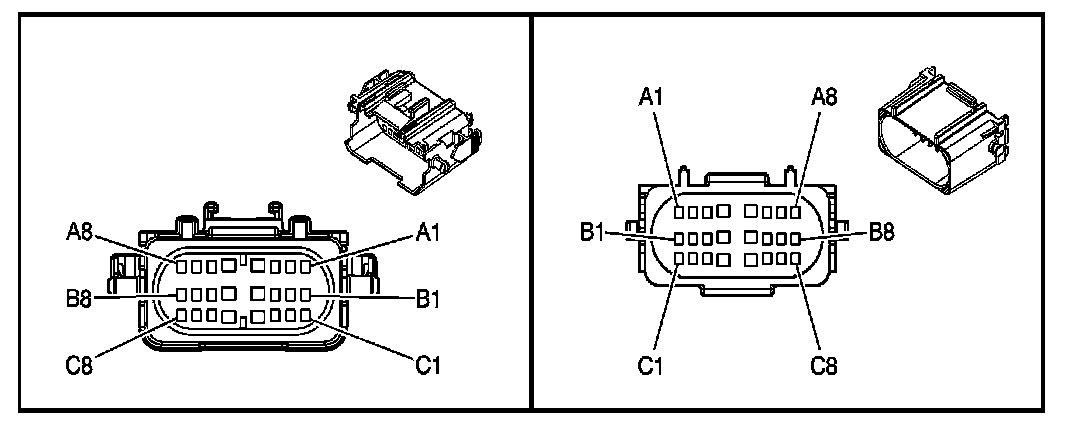

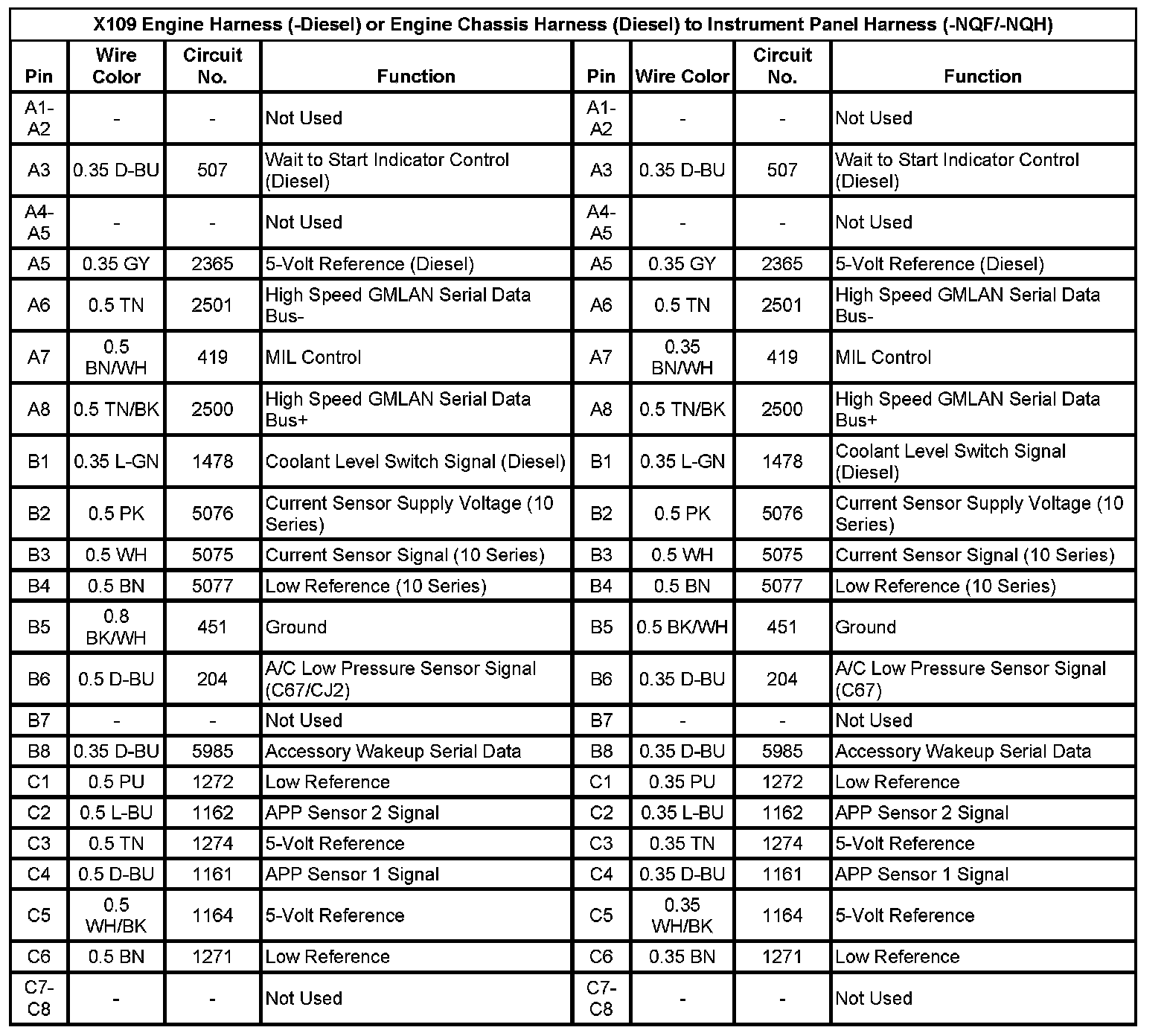

X109 Engine Harness (-Diesel) or Engine Chassis Harness (Diesel) to Instrument Panel Harness (-NQF/-NQH)
![]()
