Yaw Rate Sensor: Diagrams

Component Connector End Views - Continued

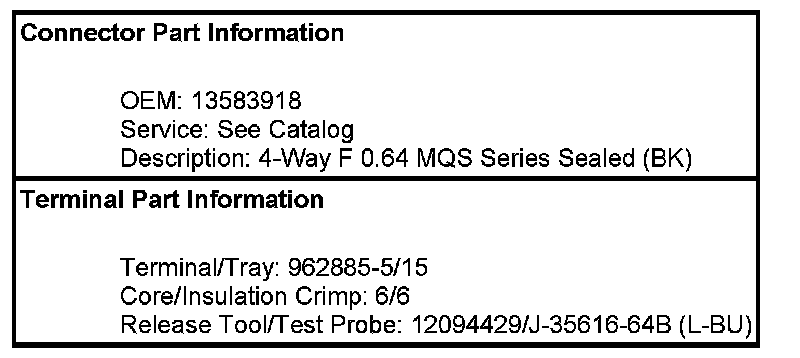

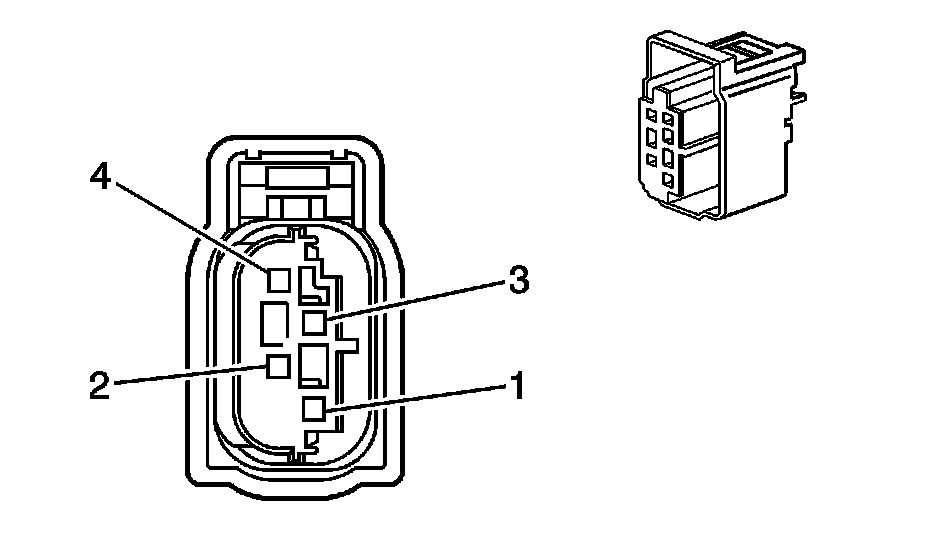

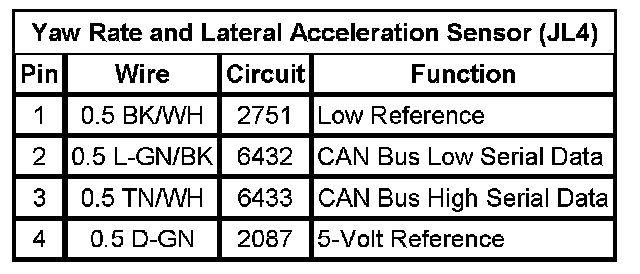

Yaw Rate and Lateral Acceleration Sensor (JL4)

Technical service diagram

Technical service diagram

Technical service diagram
