Park Brake Rear Cable Replacement - Left Side (JD9)

Parking Brake Rear Cable Replacement - Left Side (JD9)

Removal Procedure





1. Release the park brake.
2. Disable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster Disabling (Park Brake Cable Adjuster Disabling) .
3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

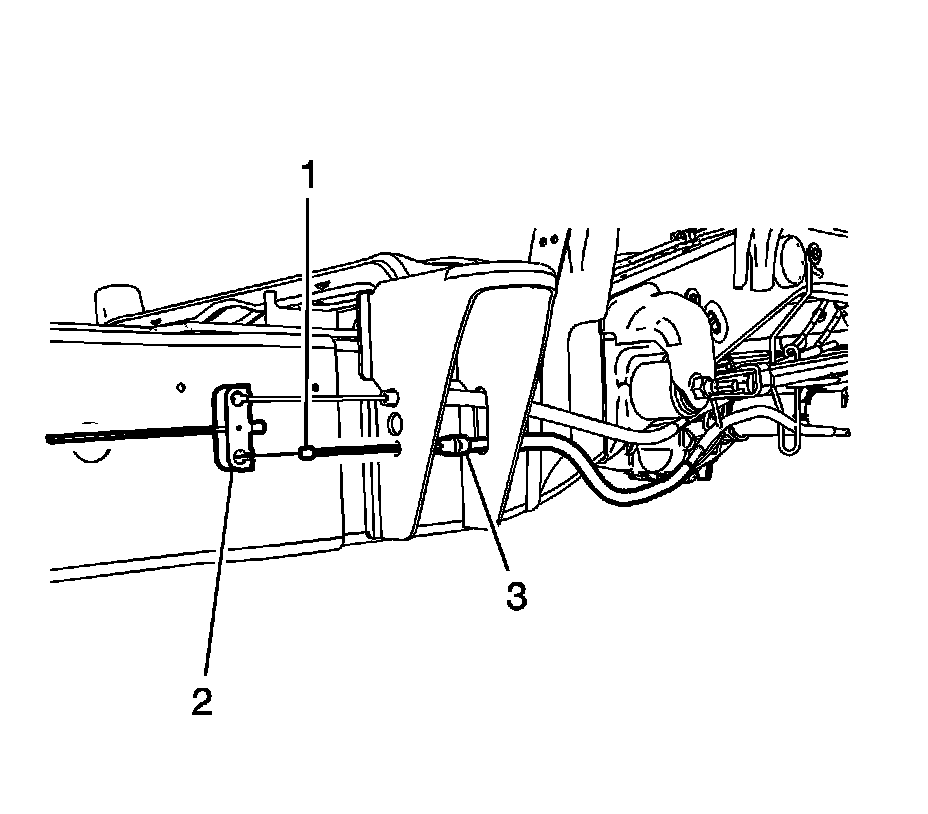

4. Disconnect the left park brake cable (1) from the intermediate cable equalizer bar (2).
5. Release the left park brake cable from the frame bracket by compressing the locking tabs and pulling the cable conduit (3) rearward.

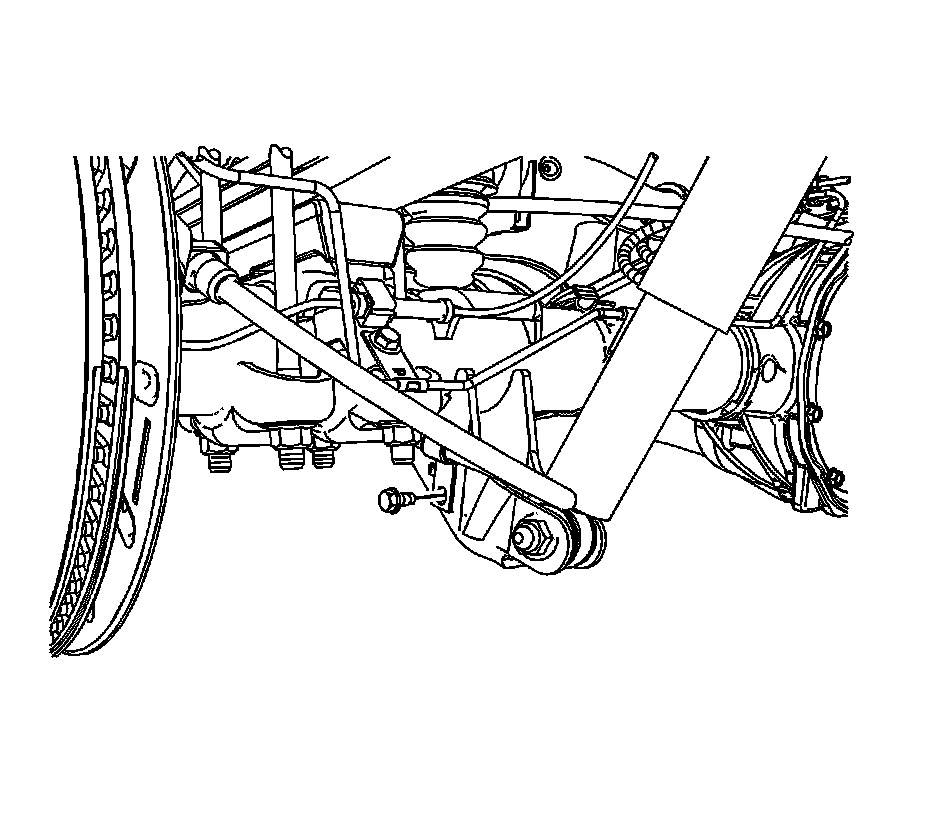

6. Remove the park brake cable clip bolt.

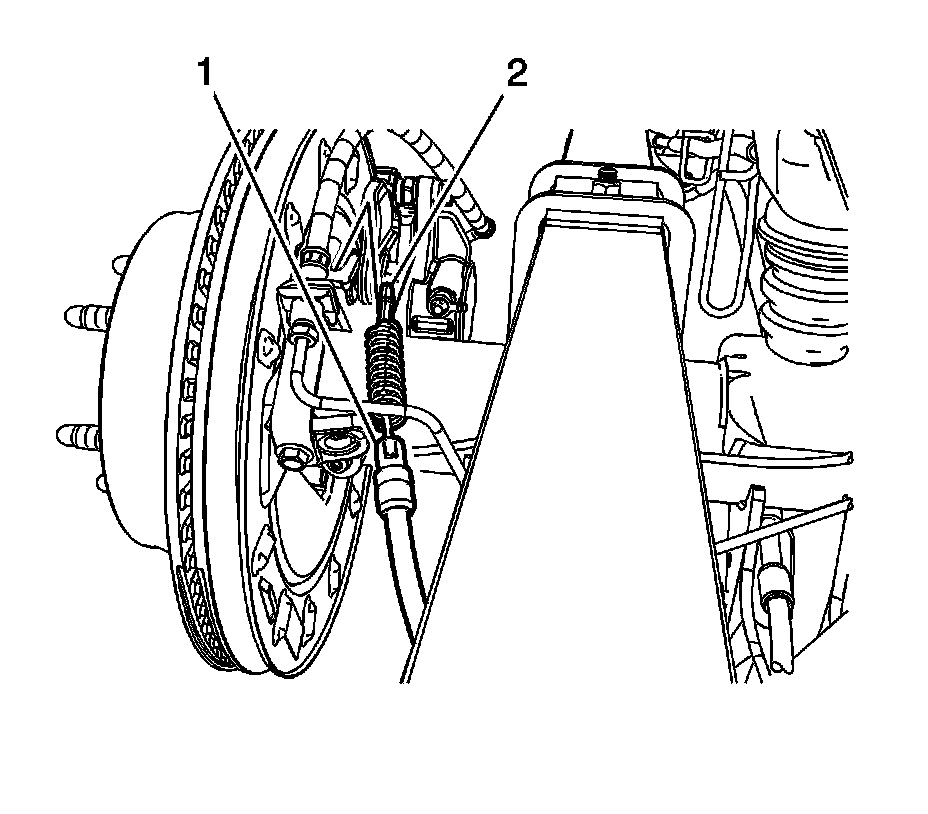

7. Release the park brake cable from the rear axle bracket by compressing the locking tabs and pulling the park brake cable conduit (1) rearward.
8. Disconnect the park brake cable eye (2) from the park brake actuator lever.
9. Remove the park brake cable assembly from the vehicle.



Installation Procedure





1. Connect the left park brake cable eye (2) to the park brake actuator lever.
2. Install the park brake cable to the rear axle bracket by pulling the cable conduit (1) rearward and inserting the cable conduit into the rear axle bracket.
Ensure the locking tabs on the cable conduit are fully engaged into the rear axle bracket.





Notice: Refer to Fastener Notice .

3. Install the park brake cable clip bolt.

Tighten the bolt to 22 N.m (16 lb ft).





4. Connect the left rear park brake cable (1) to the intermediate cable equalizer bar (2).
5. Insert the park brake cable conduit (3) into the frame bracket.
Ensure the locking tabs on the cable conduit are fully engaged into the frame bracket.
6. Enable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster Enabling (Park Brake Cable Adjuster Enabling) .
7. Adjust the park brake. Refer to Park Brake Adjustment (Drum Brake) (Park Brake Adjustment (Drum Brake))Park Brake Adjustment (Disc Brake) (Park Brake Adjustment (Disc Brake)) .
