6L50/6L80/6L90 - Automatic Transmission

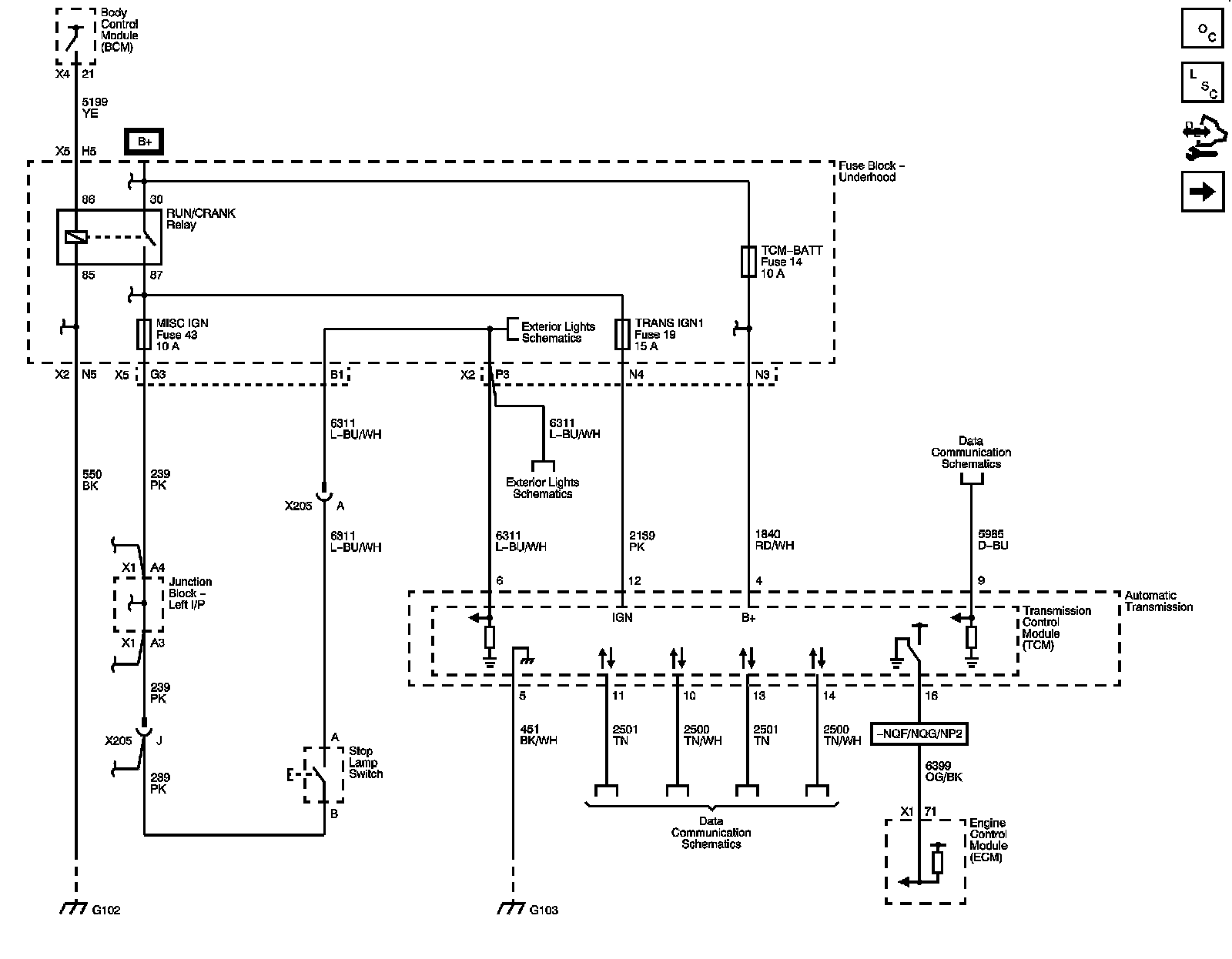

Module Power, Ground, Serial Data and Stop Lamps Signal

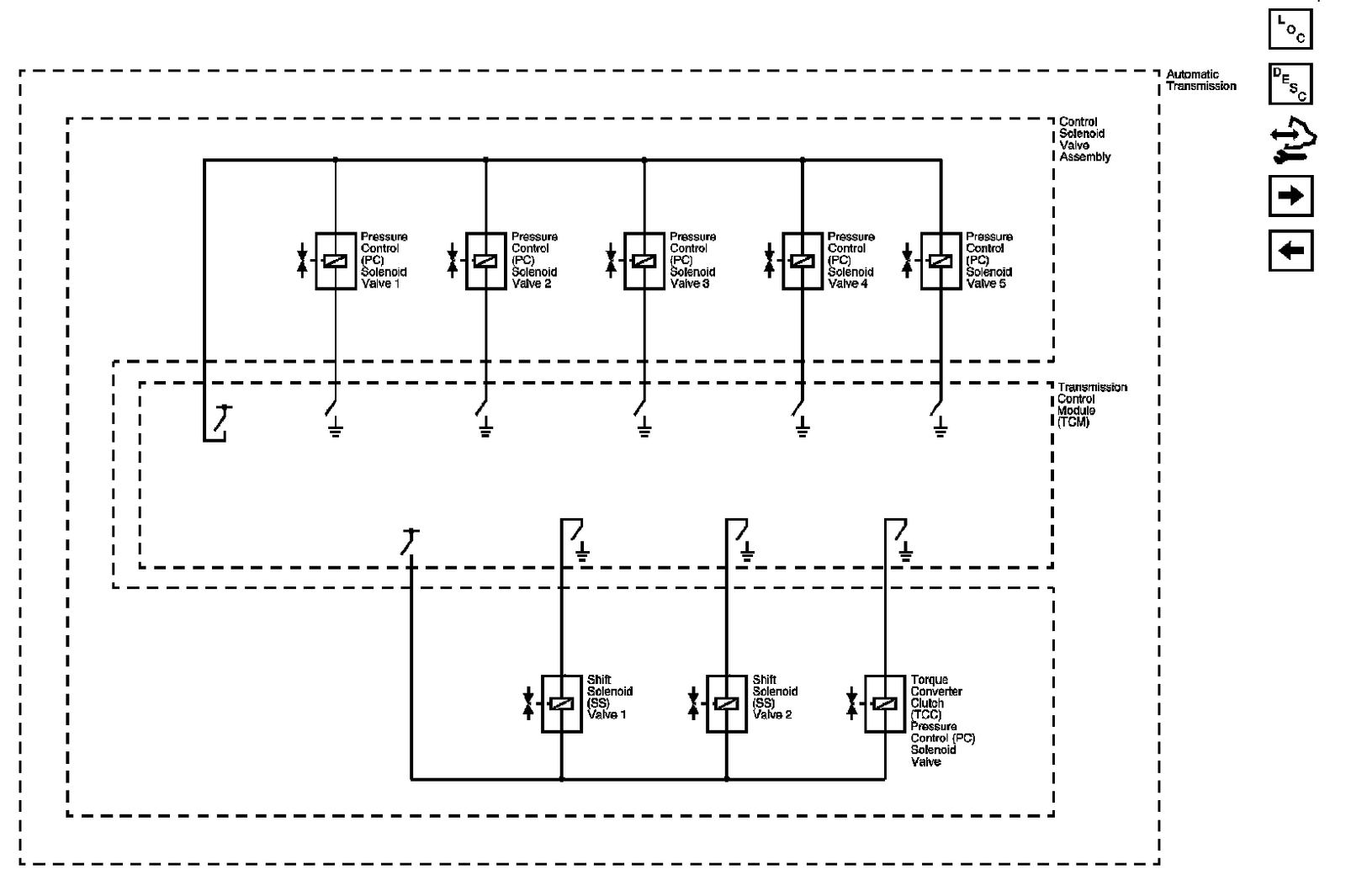

Pressure Controls - 1 of 2 and Shift Controls

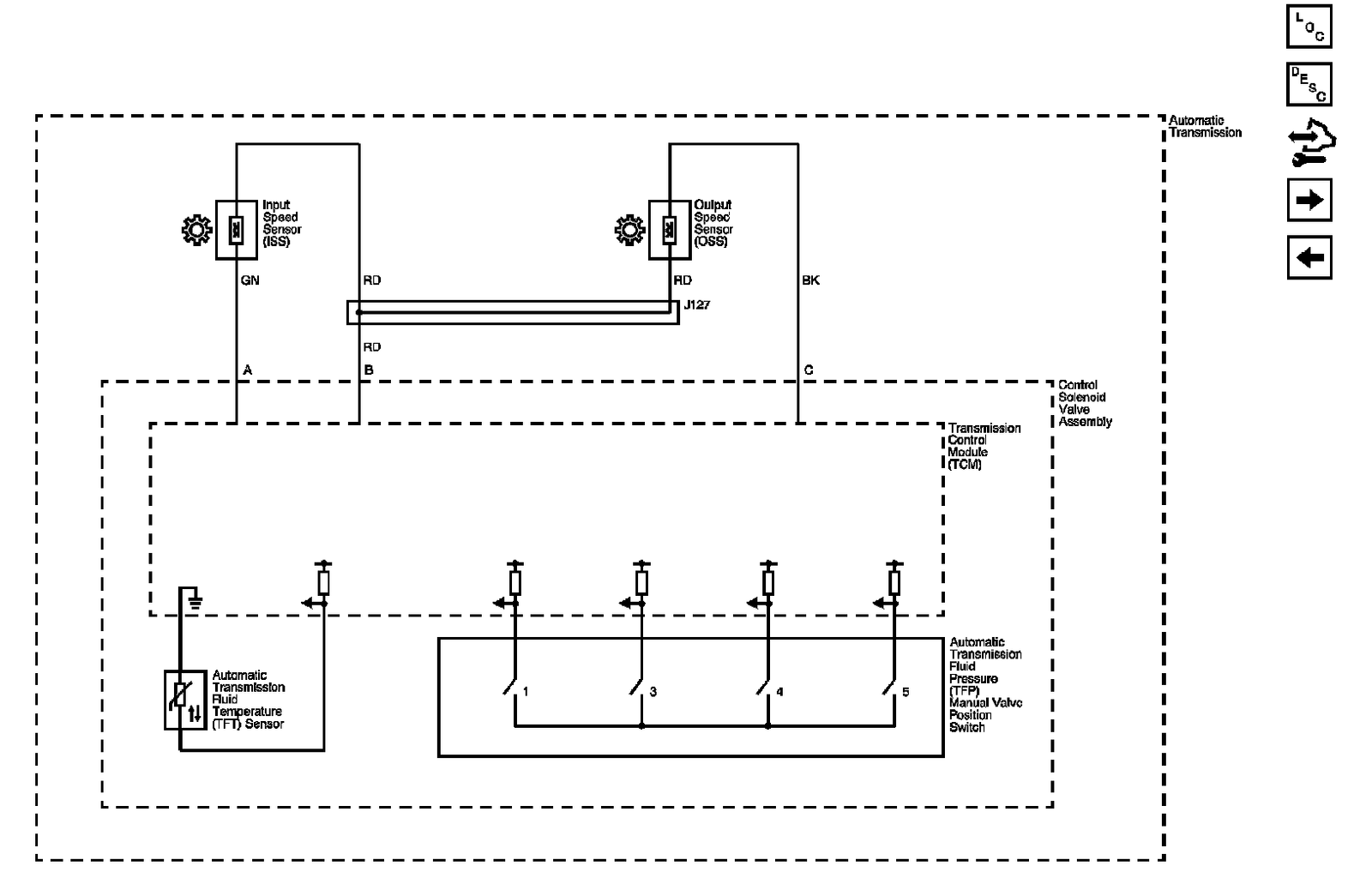

Pressure Controls - 2 of 2 and Speed Sensors

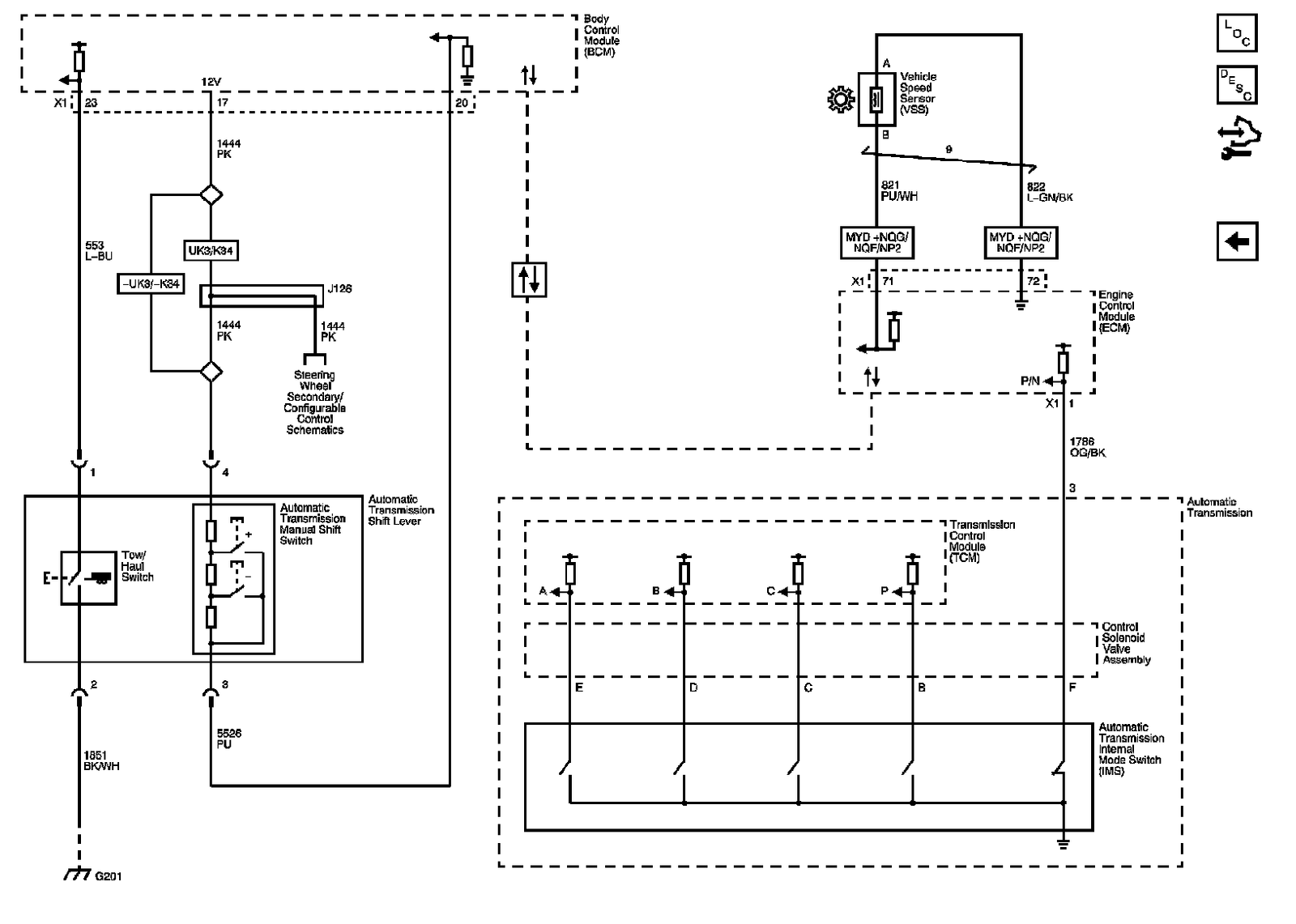

Transmission Range Signals and Driver Shift Request






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Location. Locations
