Control Module: Diagrams

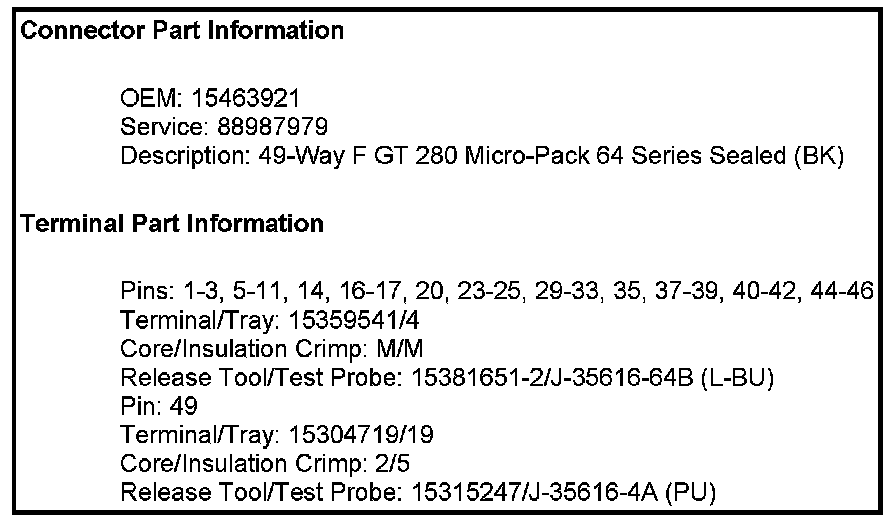

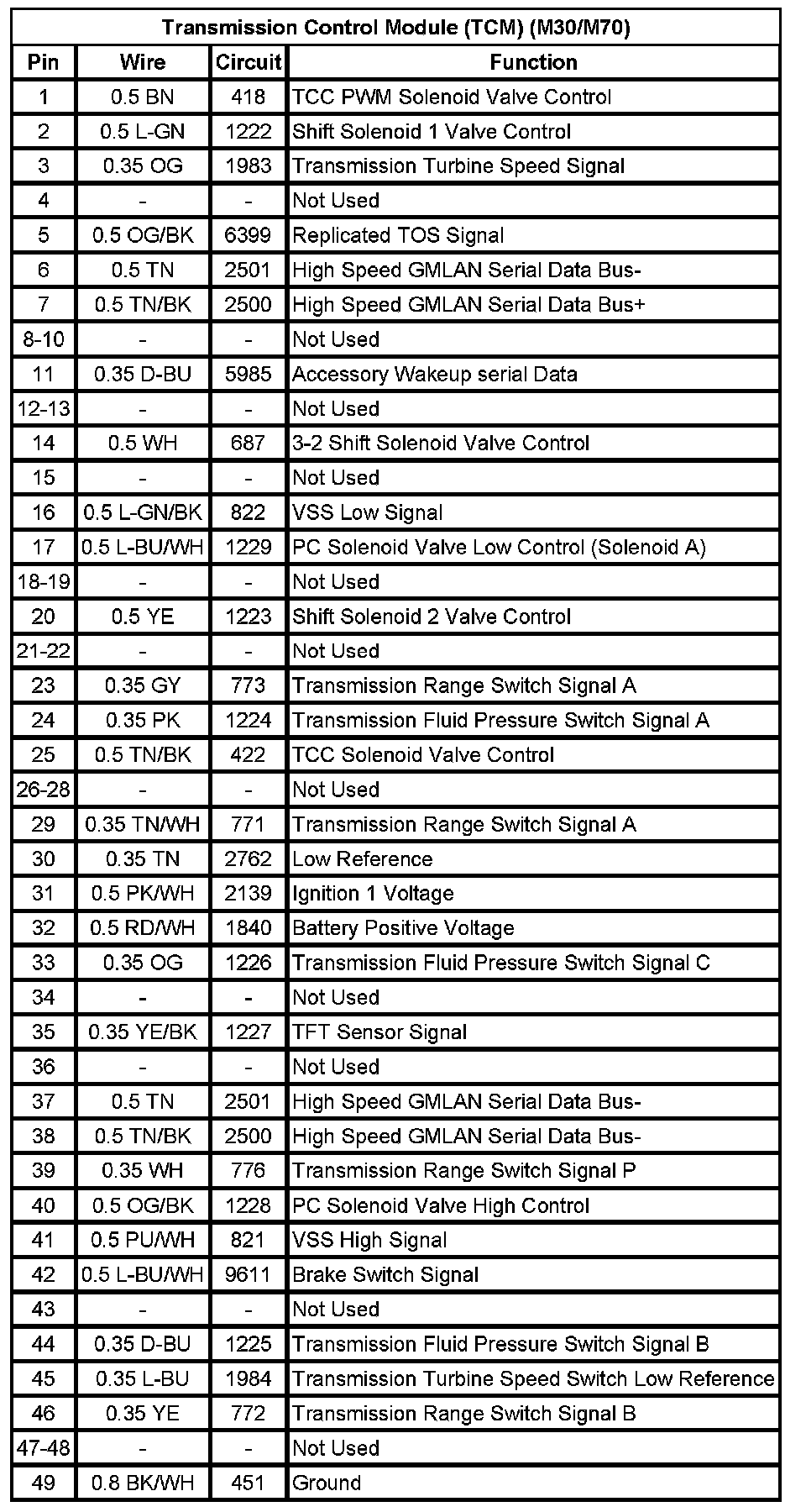

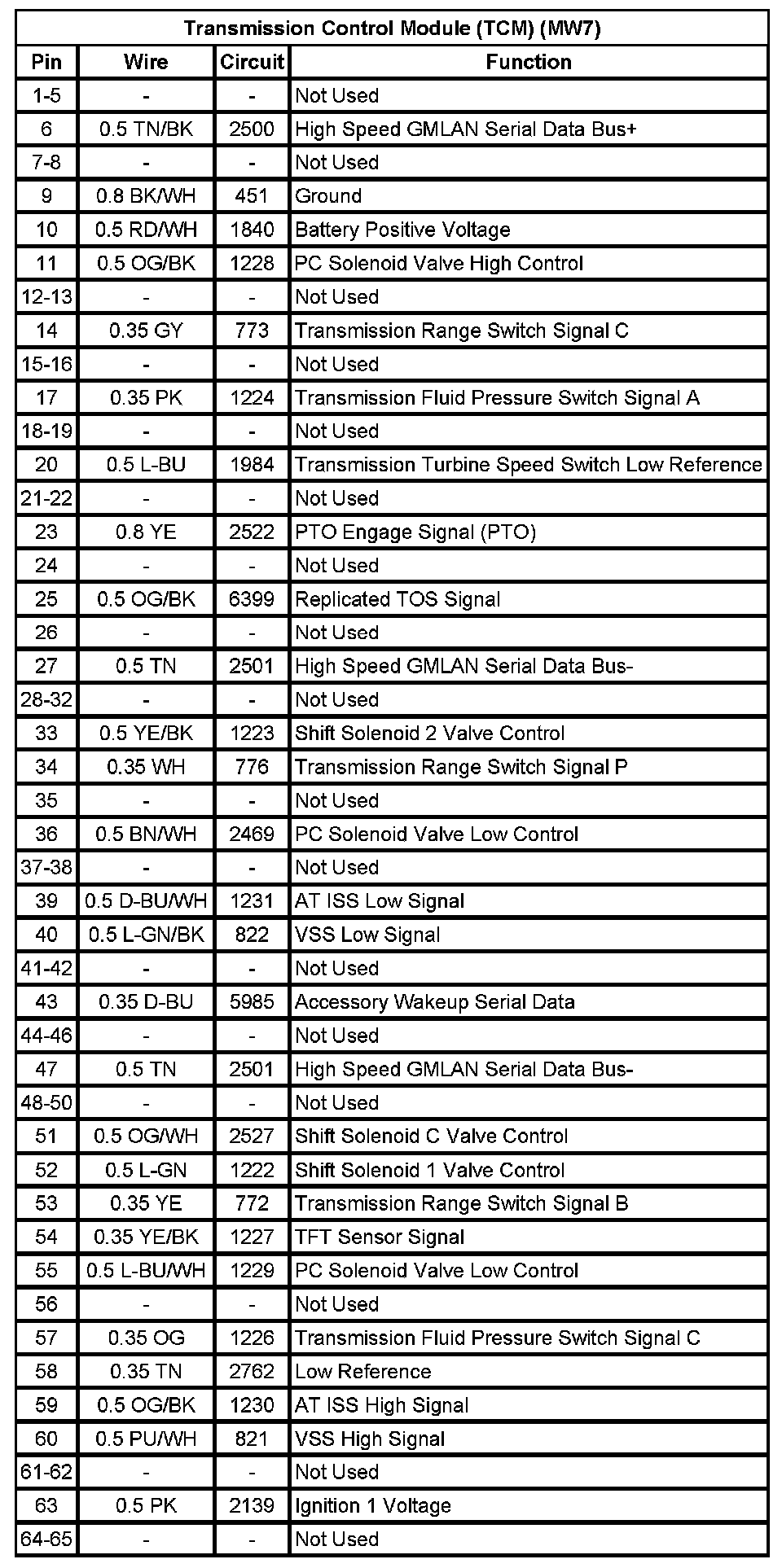

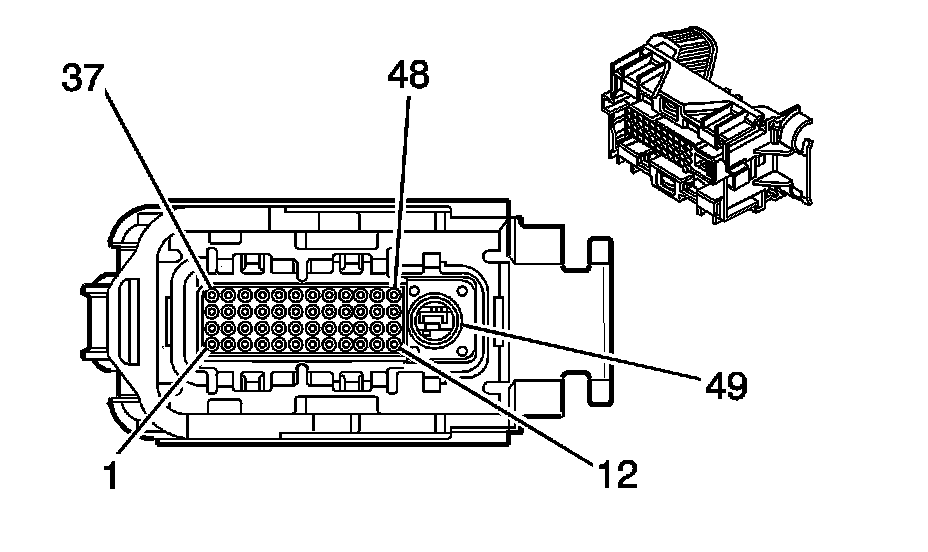

Component Connector End Views - ContinuedTransmission Control Module (TCM) (M30/M70)Transmission Control Module (TCM) (MW7)Transmission Control Module (TCM) (MW7) (Pin 1 To 65):

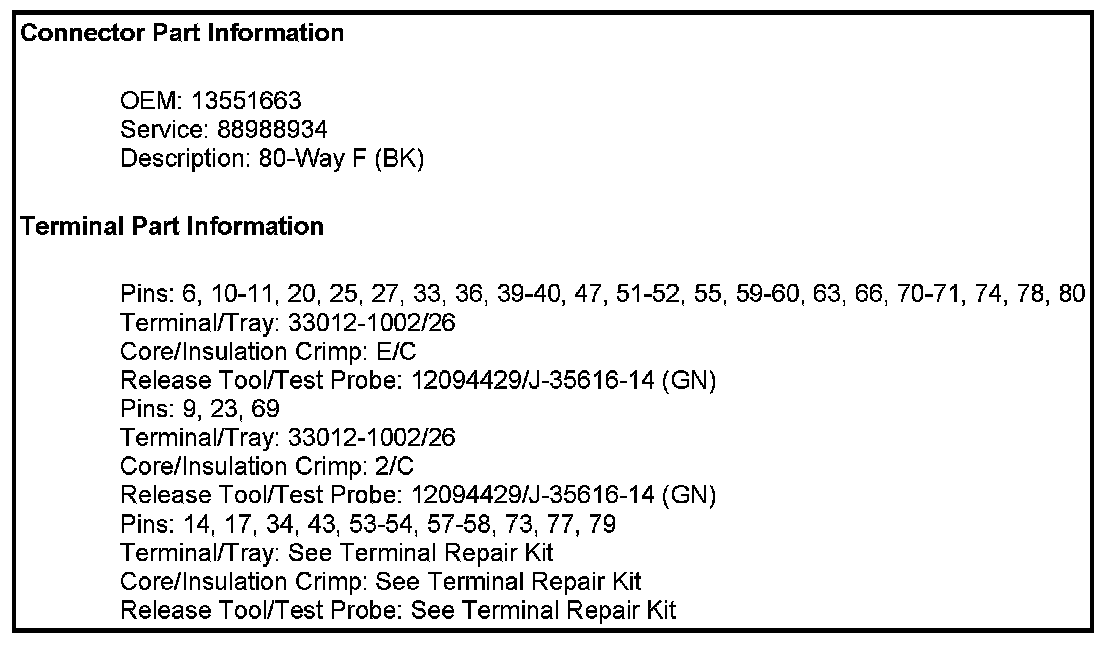

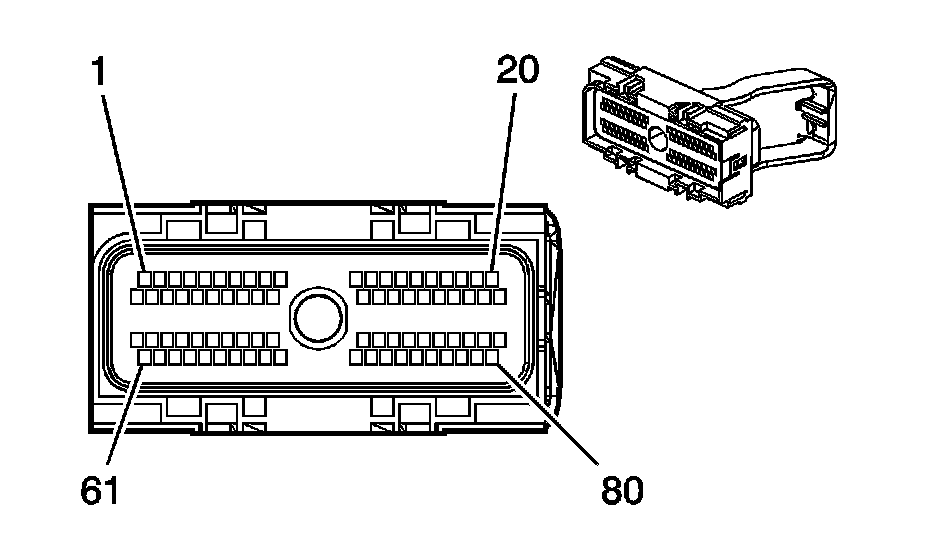

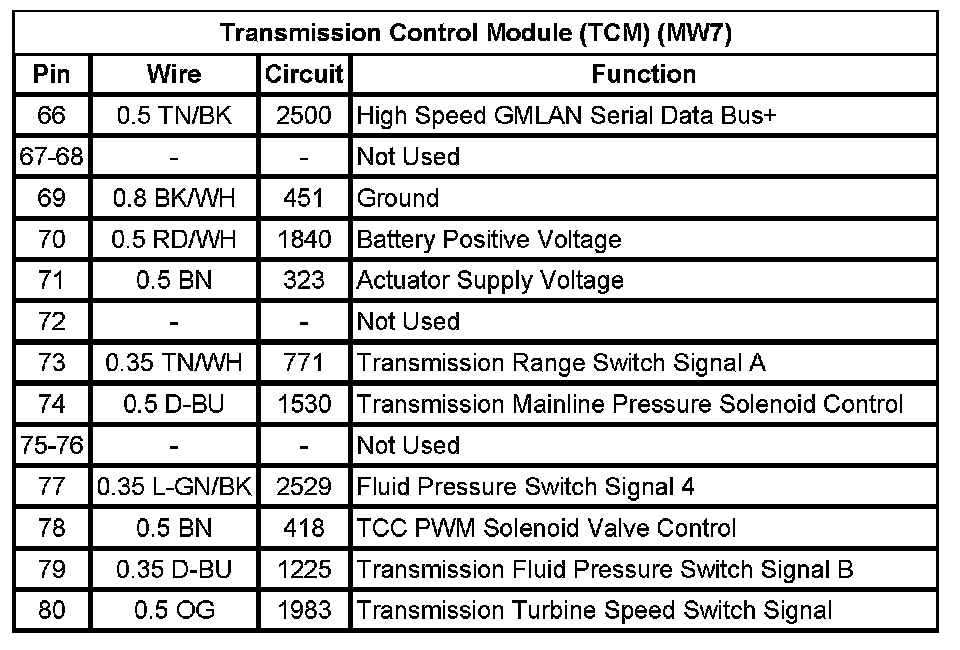

Transmission Control Module (TCM) (MW7) (Pin 66 To 80):
![]()
