Transmission Fluid Cooler Hose/Pipe Replacement

Transmission Fluid Cooler Hose/Pipe Replacement

Removal Procedure

1. Remove the radiator grille. Refer to Radiator Grille Replacement Service and Repair.

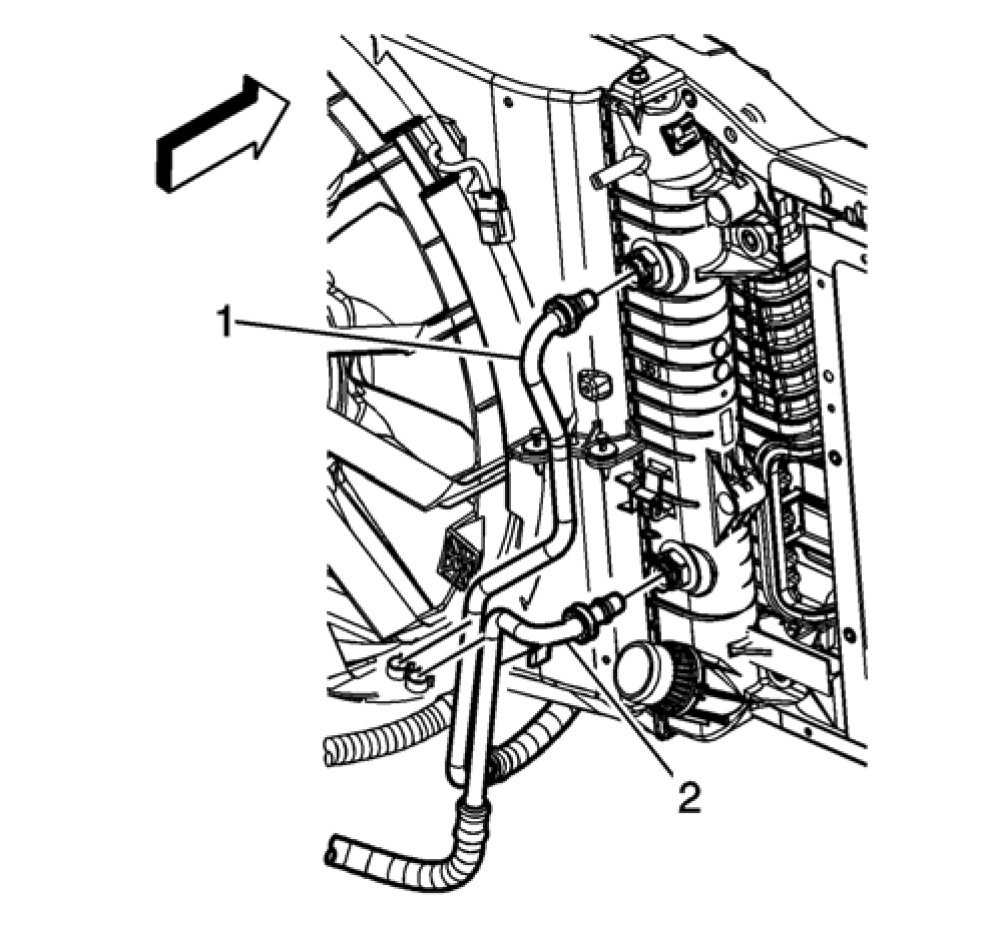

2. Remove the transmission fluid cooler hose from the auxiliary oil cooler (2). Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection.






3. Remove the transmission fluid cooler hose from the radiator (1). Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection.
4. Raise the vehicle.
5. Remove the engine protection shield. Refer to Engine Shield Replacement Engine Shield Replacement.

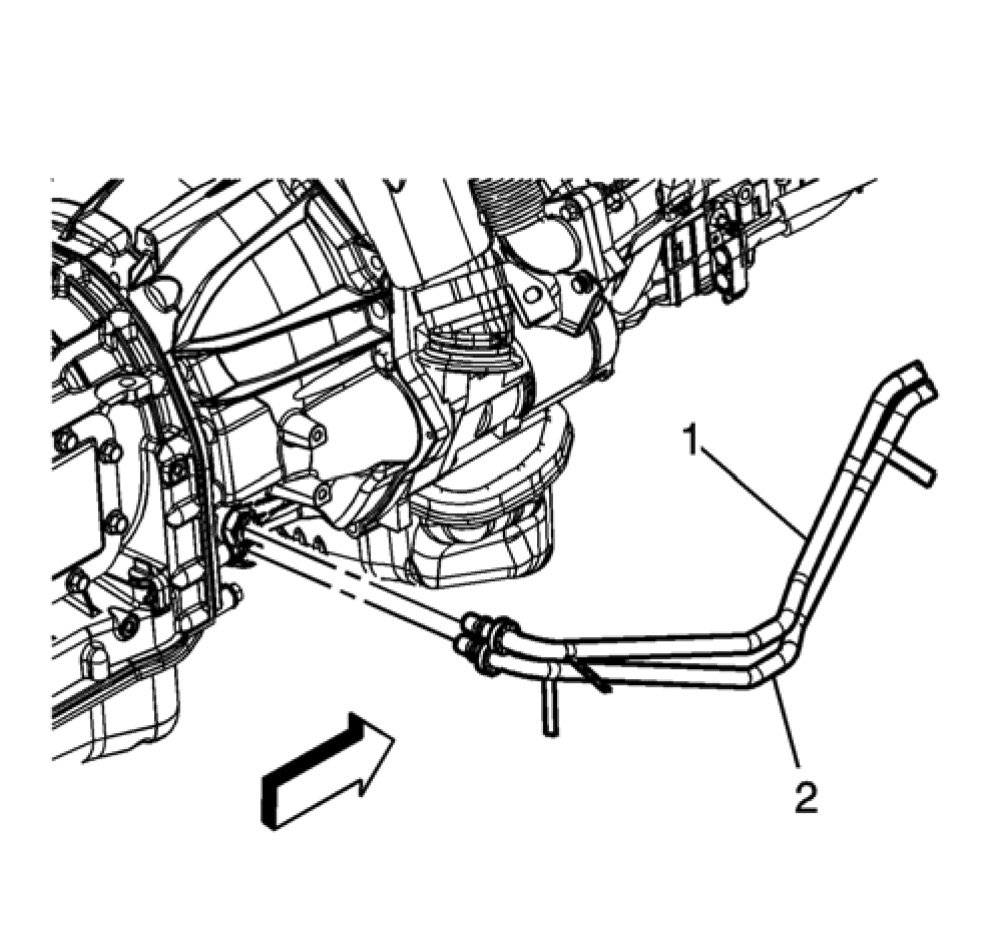

6. Remove the cooling lines from the transmission (1). Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection.

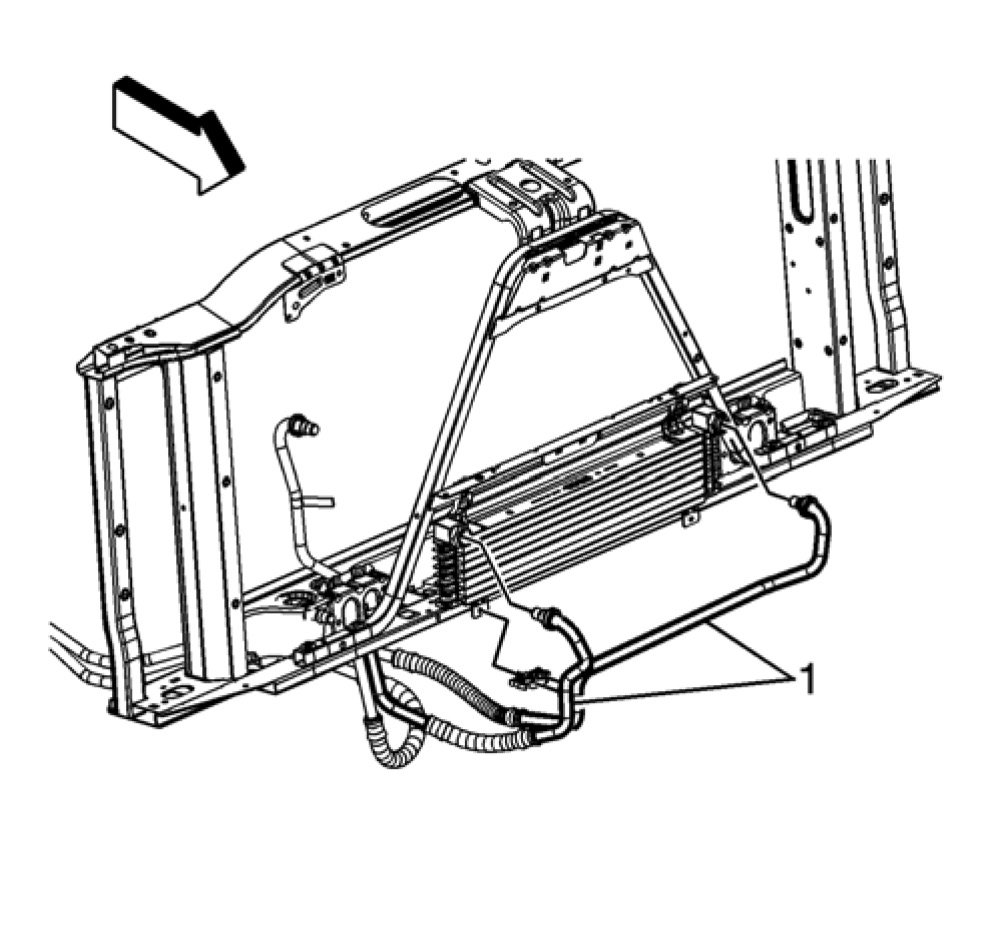

7. Remove the oil cooling lines from the vehicle.

Installation Procedure






1. Install the transmission oil cooler lines to the vehicle.
2. Install the cooling lines to the transmission (1). Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection.
3. Install the engine protection shield. Refer to Engine Shield Replacement Engine Shield Replacement.
4. Lower the vehicle.






5. Install the transmission fluid cooler hose to the radiator (1). Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection.






6. Install the transmission fluid cooler hose to the auxiliary oil cooler (1). Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection.
7. Install the radiator grille. Refer to Radiator Grille Replacement Service and Repair.
