Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

Connector Views

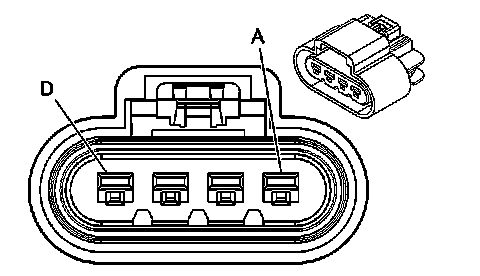

Component Connector End Views

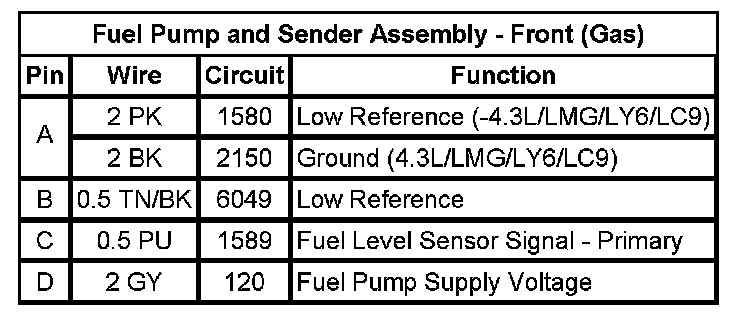

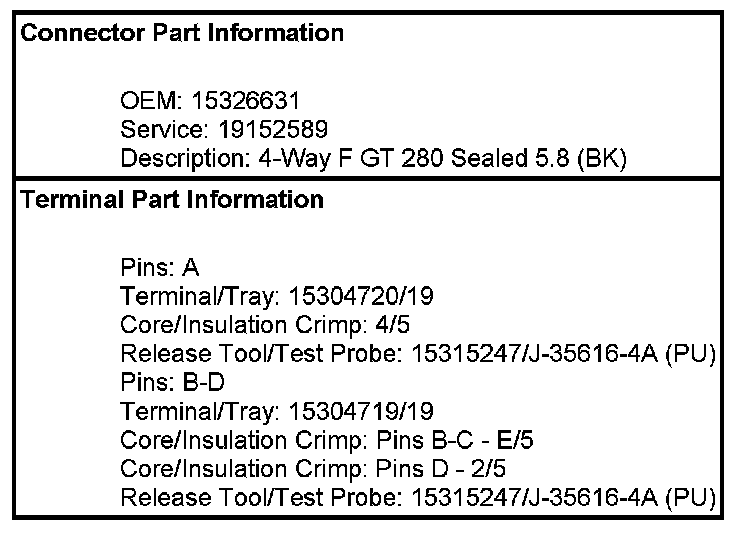

Fuel Pump and Sender Assembly - Front (Gas)

Technical service diagram

Technical service diagram

Technical service diagram

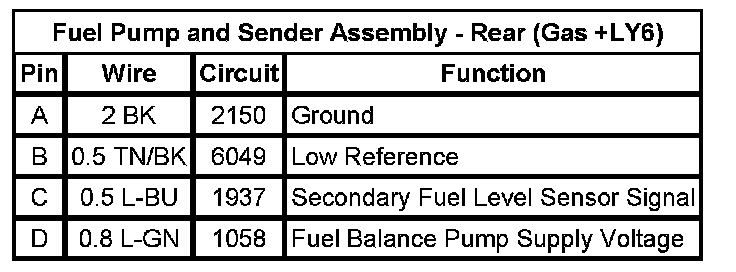

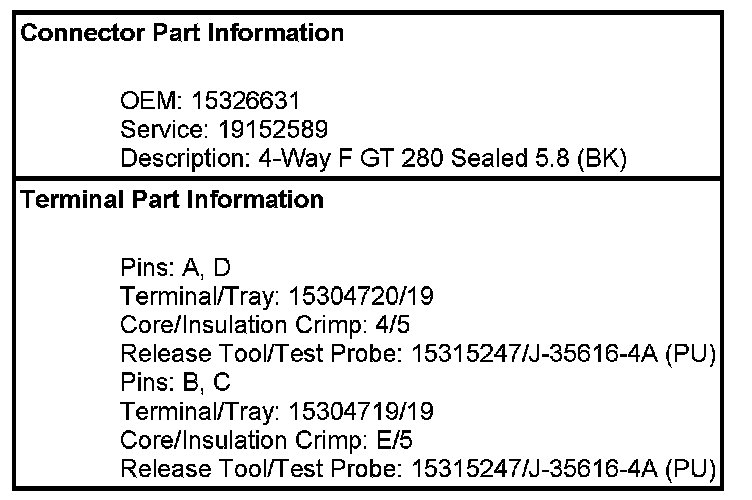

Fuel Pump and Sender Assembly - Rear (Gas +LY6)

Technical service diagram

Technical service diagram

Technical service diagram
