Air Temperature Sensor ( Ambient / Intake ): Diagrams

Component Connector End Views - Continued

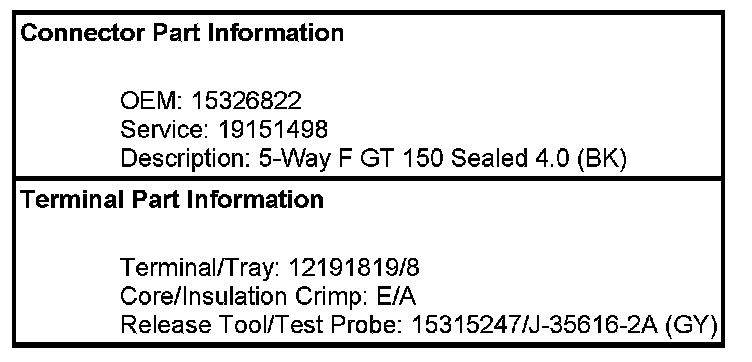

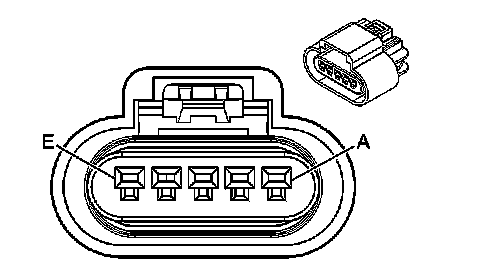

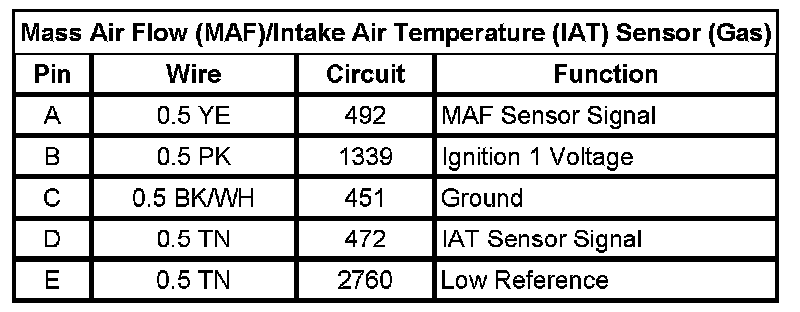

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (Gas)

Technical service diagram

Technical service diagram

Technical service diagram
