Exhaust Pipe Gasket: Service and Repair

Exhaust Seal Replacement (4.8L, 5.3L, 6.0L, 6.2L)

Removal Procedure





1. Remove the catalytic converter. Refer to Catalytic Converter Replacement (4.3L) (Service and Repair)Catalytic Converter Replacement (4.8L, 5.3L, 6.0L, 6.2L) (Service and Repair)Catalytic Converter Replacement (6.6L) (Service and Repair) .

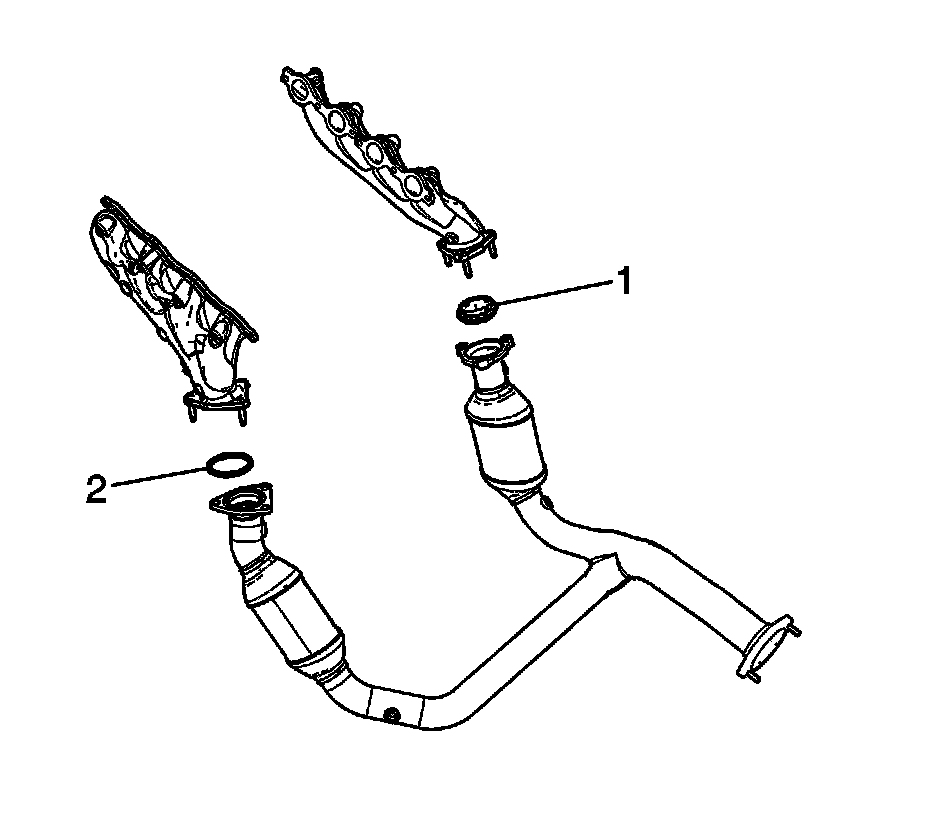

2. Remove and discard the appropriate exhaust seal (1 or 2). (1500 series shown, 2500 series similar).



Installation Procedure





1. Install the NEW appropriate exhaust seal (1 or 2). (1500 series shown, 2500 series similar).
2. Install the catalytic converter. Refer to Catalytic Converter Replacement (4.3L) (Service and Repair)Catalytic Converter Replacement (4.8L, 5.3L, 6.0L, 6.2L) (Service and Repair)Catalytic Converter Replacement (6.6L) (Service and Repair) .
