Oil Level Sensor: Diagrams

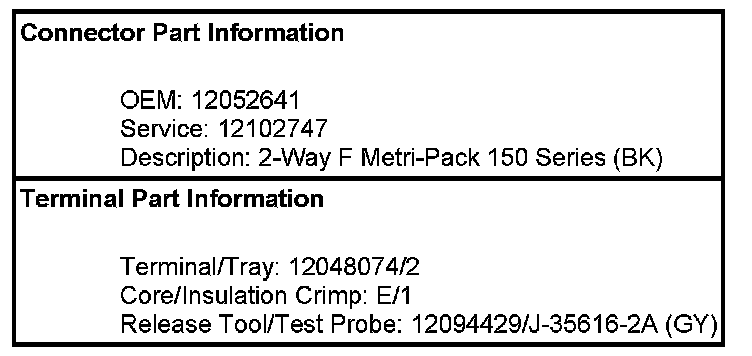

Component Connector End Views

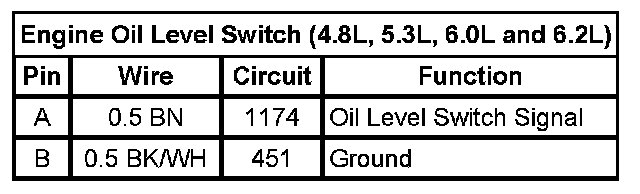

Engine Oil Level Switch (4.8L, 5.3L, 6.0L and 6.2L)

Technical service diagram

Technical service diagram

Technical service diagram
