Front Drive Axle

Front Axle Lubricant Replacement

Removal Procedure

1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the engine shield, if equipped. Refer to Engine Shield Replacement .
3. Clean the area around the front axle fill plug and the drain plug.

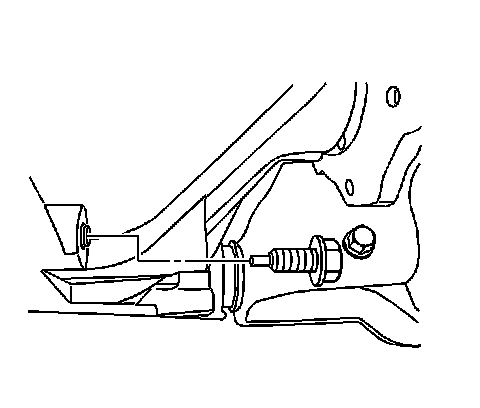

4. Remove the fill plug.




5. Remove the drain plug.
6. Drain the fluid from the front differential carrier assembly.



Installation Procedure






Notice: Refer to Fastener Notice .

1. Install the drain plug.

Tighten the drain plug to 33 N.m (24 lb ft).

2. Fill the differential carrier assembly with axle lubricant. Use the correct fluid. Refer to Approximate Fluid Capacities and Sealers, Adhesives, and Lubricants (Front Drive Axle) .
3. Install the fill plug.

Tighten the fill plug to 33 N.m (24 lb ft).

4. Install the engine shield, if equipped. Refer to Engine Shield Replacement .
5. Lower the vehicle.
