Washer Fluid Level Switch: Diagrams

Component Connector End Views - Continued

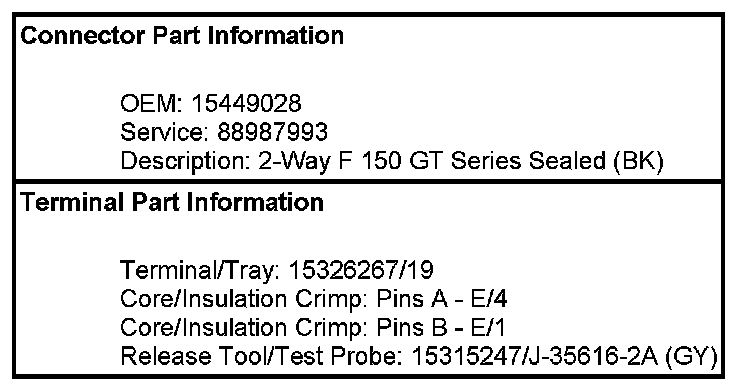

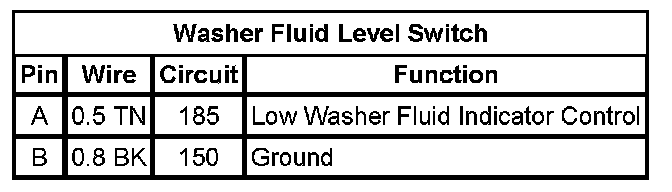

Washer Fluid Level Switch

Technical service diagram

Technical service diagram

Technical service diagram
