Power Window Switch: Diagrams

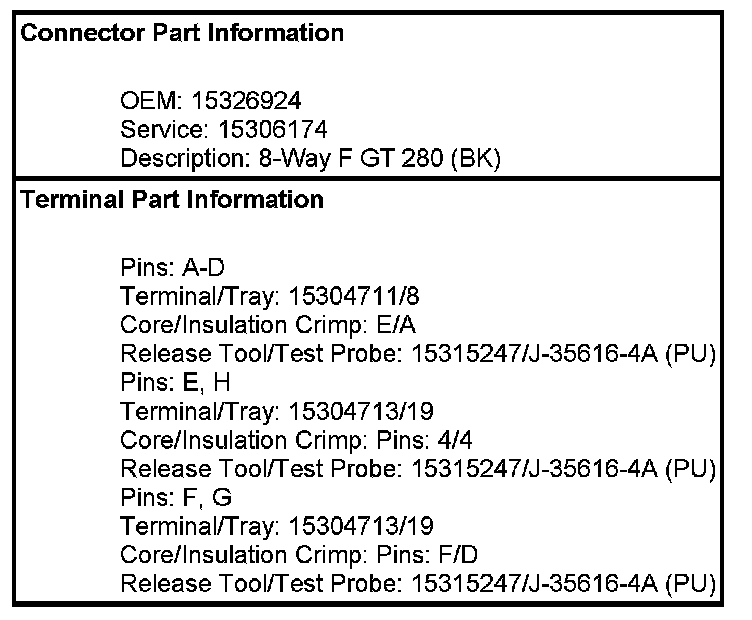

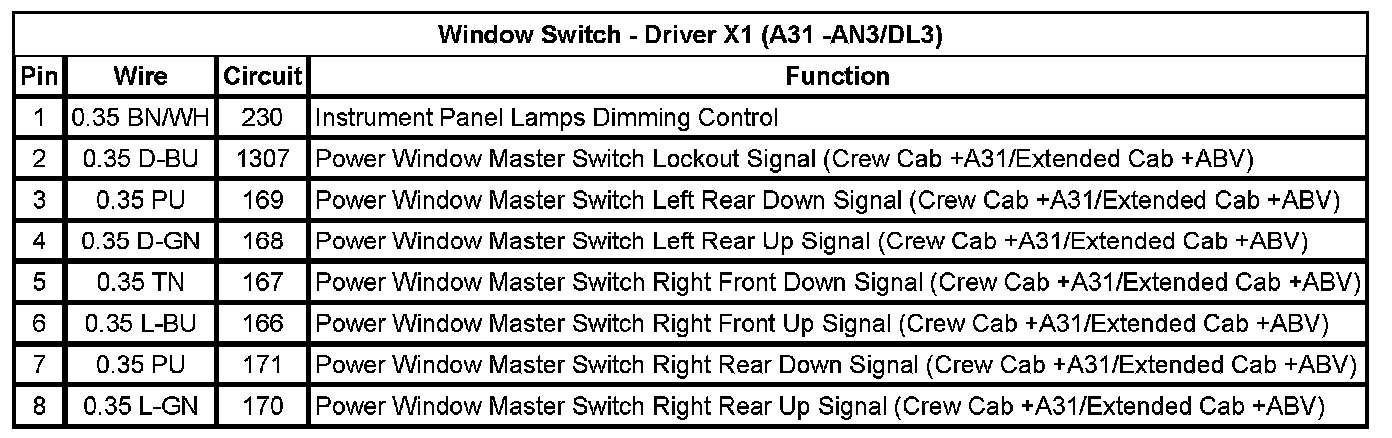

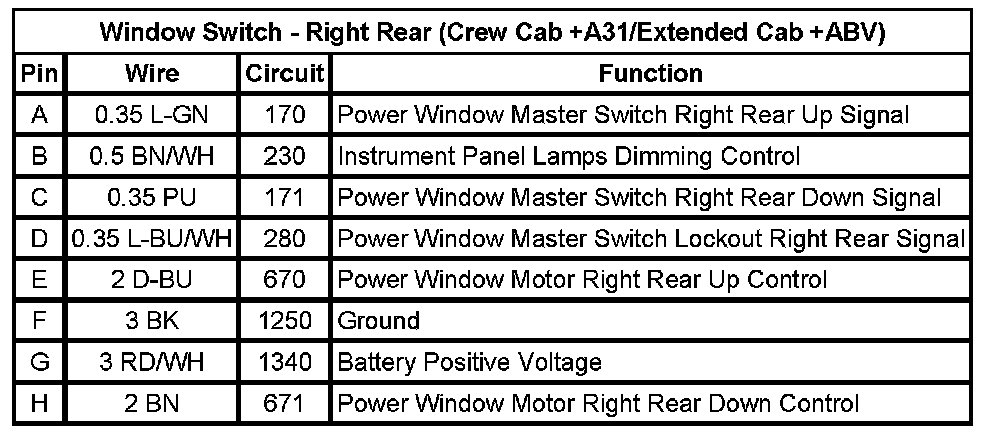

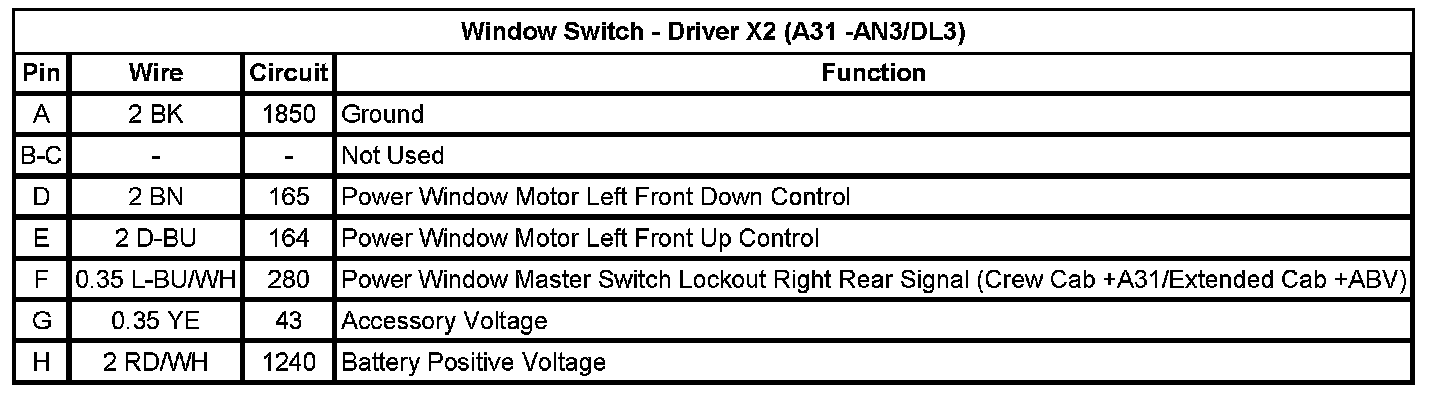

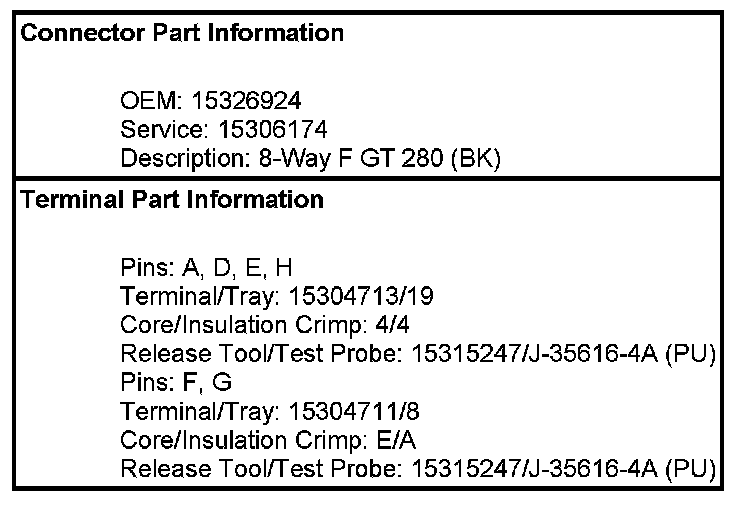

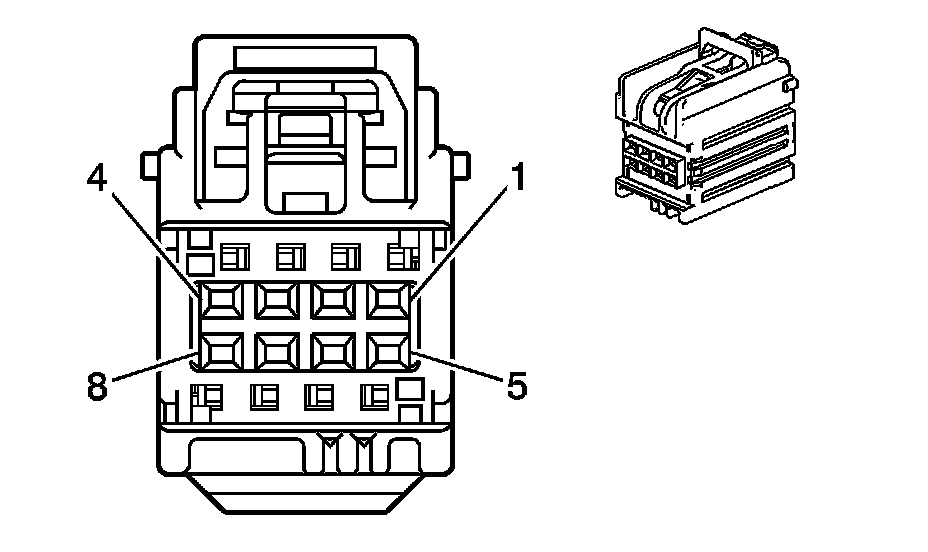

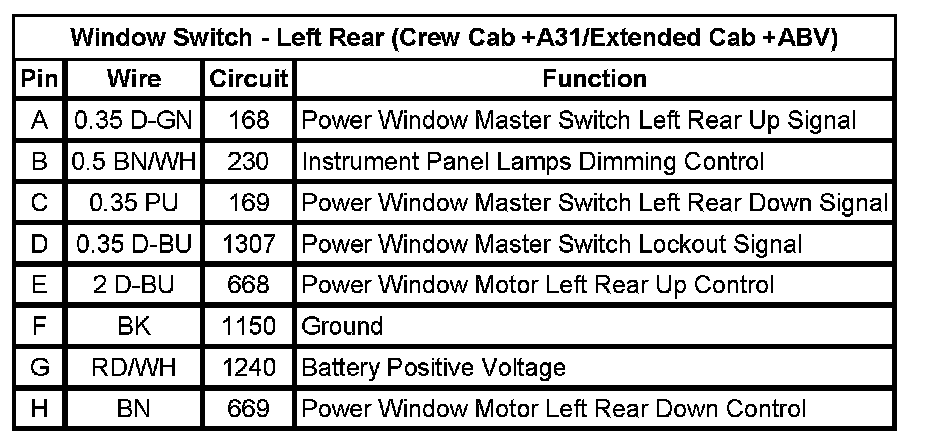

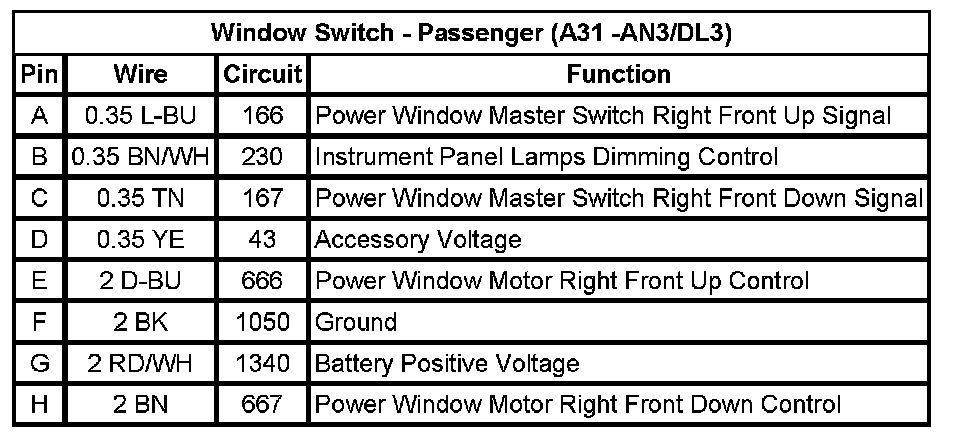

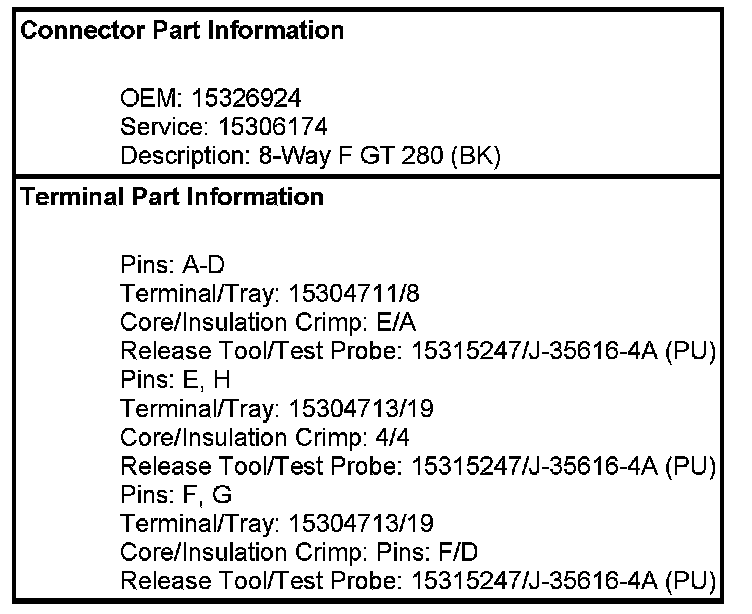

Component Connector End Views - ContinuedWindow Switch - Driver X1 (A31 -AN3/DL3)Window Switch - Driver X2 (A31 -AN3/DL3)Window Switch - Left Rear (Crew Cab +A31/Extended Cab +ABV)Window Switch - Passenger (A31 -AN3/DL3)Window Switch - Right Rear (Crew Cab +A31/Extended Cab +ABV)Sliding Rear Window Switch (A48)
![]()
