Neutral Safety Switch: Diagrams

Component Connector End Views - Continued

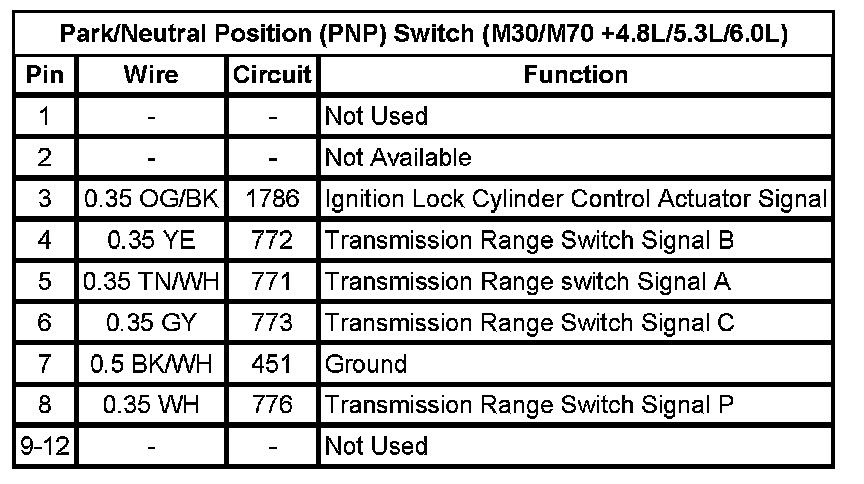

Park/Neutral Position (PNP) Switch (M30/M70 +4.8L/5.3L/6.0L)

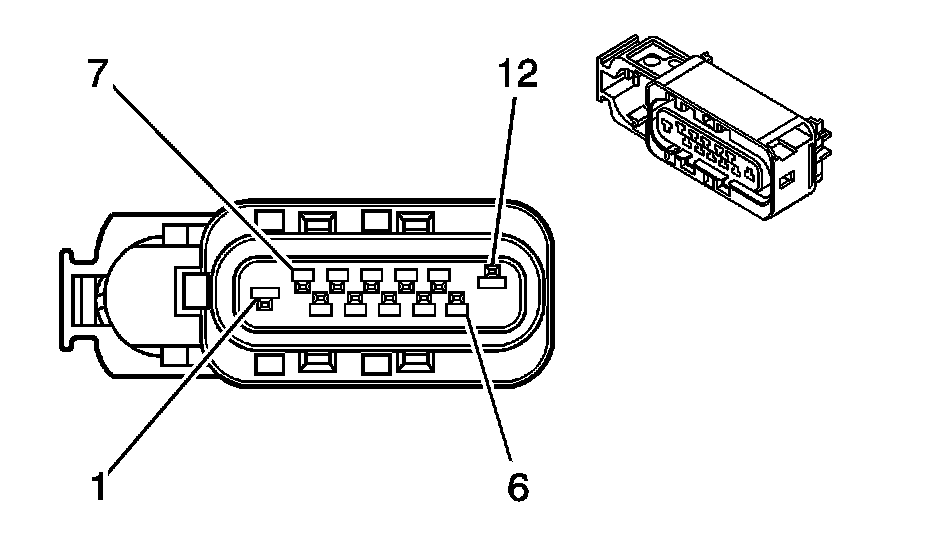

Technical service diagram

Technical service diagram

Technical service diagram
