Connector Views

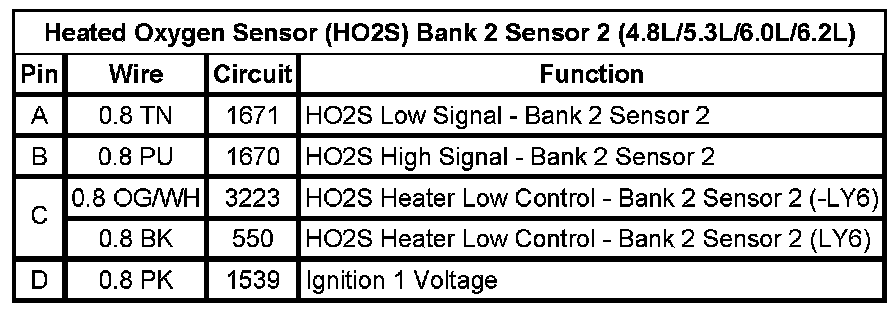

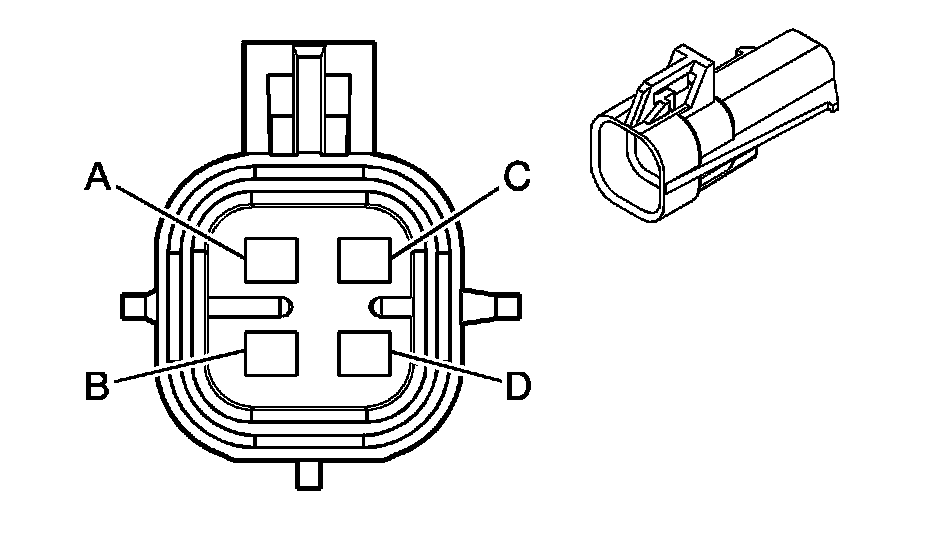

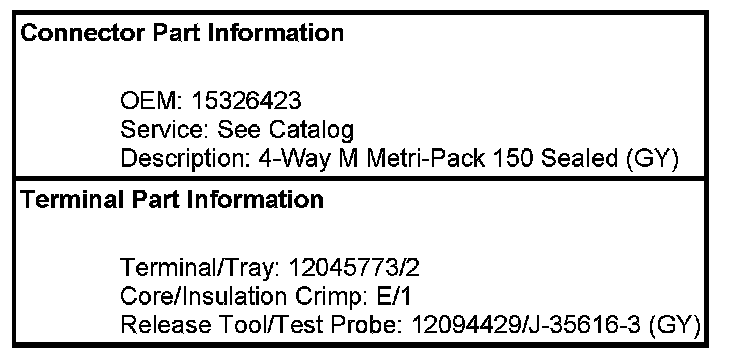

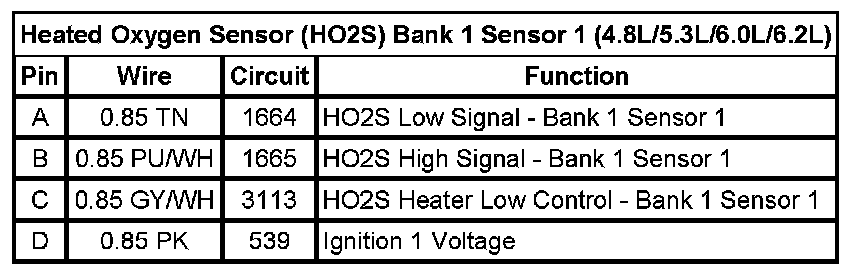

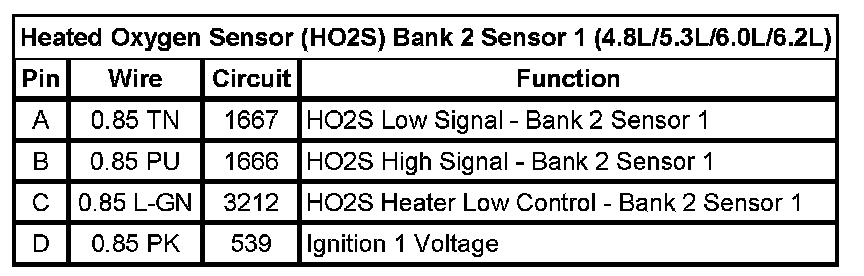

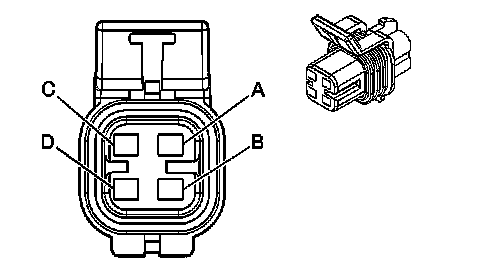

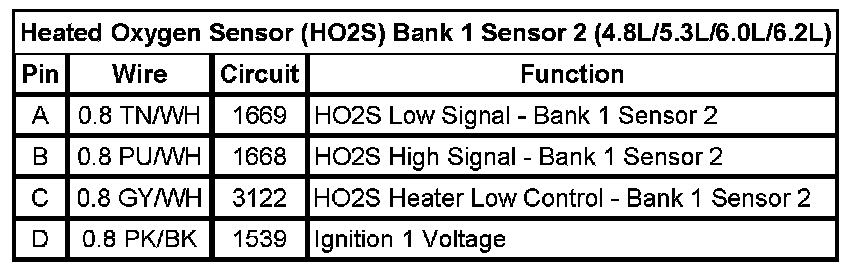

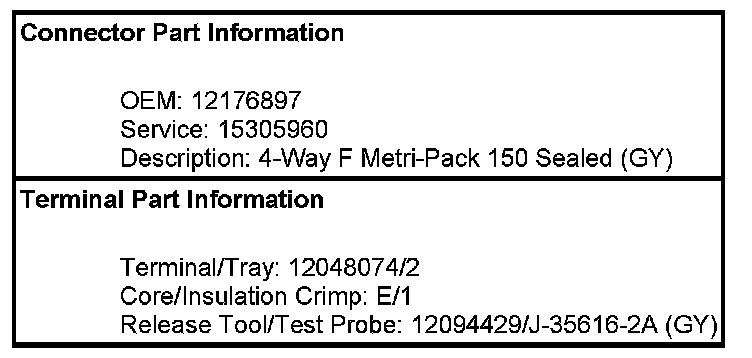

Component Connector End ViewsHeated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (4.8L/5.3L/6.0L/6.2L)Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 (4.8L/5.3L/6.0L/6.2L)Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (4.8L/5.3L/6.0L/6.2L)Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (4.8L/5.3L/6.0L/6.2L)
![]()
