Parking Brake Warning Switch: Service and Repair

Parking Brake Indicator Switch Replacement

Removal Procedure

Caution: Refer to Battery Disconnect Caution .

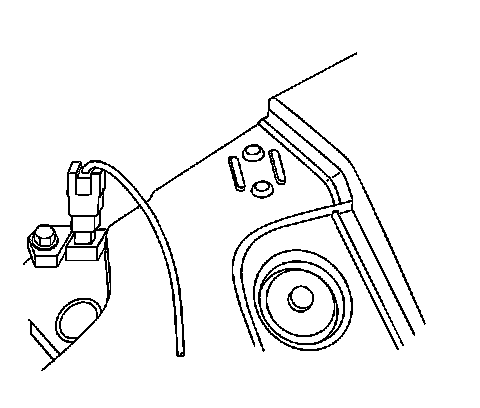

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (w/Single Battery) Battery Negative Cable Disconnection and Connection (w/Auxiliary Battery) Battery Negative Cable Disconnection and Connection (w/Dual Batteries) .
2. Without disconnecting the electrical connectors, remove the left side instrument panel electrical center/junction block and position aside. Refer to Instrument Panel Electrical Center or Junction Block Replacement - Left Side .
3. Disconnect the park brake warning lamp switch electrical connector.

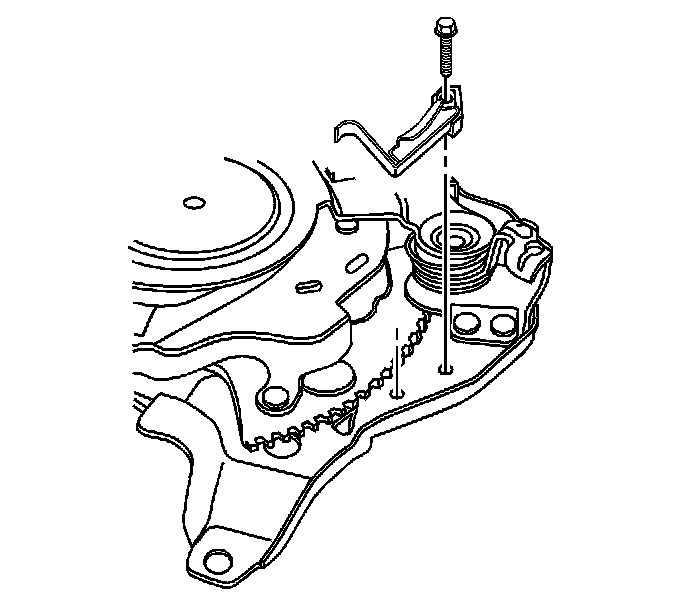

4. Remove the park brake warning lamp switch bolt.
5. Remove the park brake warning lamp switch.



Installation Procedure





1. Install the park brake warning lamp switch.

Notice: Refer to Fastener Notice .

2. Install the park brake warning lamp switch bolt.

Tighten the bolt to 3 N.m (27 lb in).





3. Connect the park brake warning lamp switch electrical connector.
4. Install the left side instrument panel electrical center/junction block. Refer to Instrument Panel Electrical Center or Junction Block Replacement - Left Side .
5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (w/Single Battery) Battery Negative Cable Disconnection and Connection (w/Auxiliary Battery) Battery Negative Cable Disconnection and Connection (w/Dual Batteries) .
