Low Pressure Sensor / Switch: Diagrams

Component Connector End Views

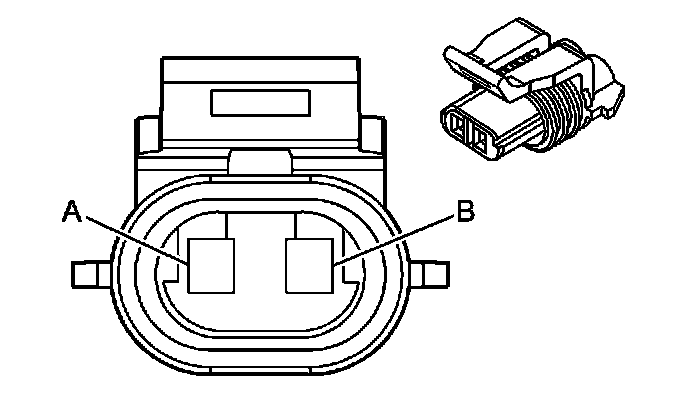

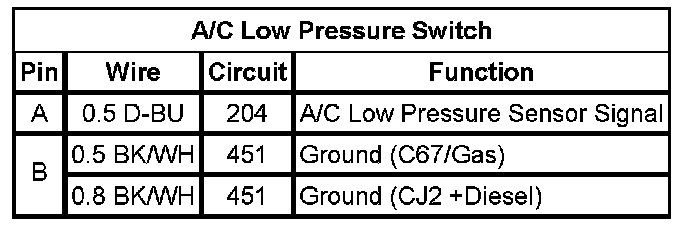

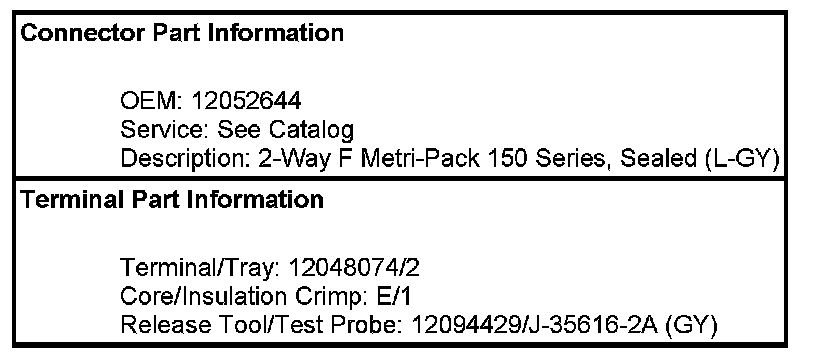

A/C Low Pressure Switch

Reverse Lockout Solenoid:

Technical service diagram

Technical service diagram

Technical service diagram
